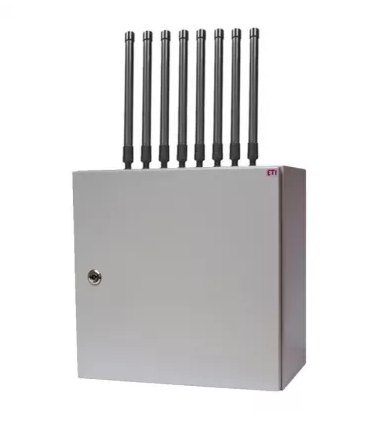

This upgraded all-in-one UAV jammer for FPV drones is designed to deal with complex multi-link communications of drones. Compared with devices such as D-US-G2 that only interfere with GPS, D-US-H80 has stronger practical adaptability. Integrates up to 10 optional frequency band modules to fully cover control channels, image transmission links and satellite positioning systems.
Supports up to 10 jamming channels, covering mainstream and potential signals of FPV drones, including but not limited to:
- Low-frequency control: 315MHz, 433MHz, 868MHz, 915MHz
- Image transmission communication: 1.2GHz, 1.4GHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz, 6.2GHz
- Navigation positioning: GPS L1, L2, L5
The box type UAV jamming system can suppress multiple UAVs at the same time through high power output (10W per channel), and fight against commercial and military models with strong anti-jamming capabilities.
The all-metal sealed chassis design of D-US-H80 can effectively suppress electromagnetic interference. The surface is sprayed with anti-corrosion coating, the sealed interface is equipped with a waterproof ring, the overall protection level reaches IP65, dustproof and waterproof, and can be used all day long.
Provide three power supply options to meet the needs of multiple indoor and outdoor scenarios:
- Battery power supply (2 hours): mobile emergency
- 24V vehicle interface: vehicle-mounted and other platforms
- 24V DC input: continuous operation
Technical parameters:
| Total output power | up to 100 W |
| Blocking range | 0-1000 meters (depending on the environment) |
| Modulation mode | FM interference (built-in PLL/VCO) |
| Power supply | 220VAC/110VAC, 24VDC/48VDC (optional) |
| Power consumption | up to 300 W |
| Antenna type | high-gain directional plate antenna or omnidirectional antenna |
| Dimensions | 430×340×200mm |
| Weight | 15kg |
| Operating temperature | -20℃ to +50℃ |
| Humidity adaptation | 5%–90% |
