Portable 3 Channel Drone Detector, Drone siren

Handheld drone detection WDTX3 utilizes a unique low-power digital-analog hybrid receiving technology combined with advanced power management. It features high-gain, low-gain, and directional ultra-wideband antennas, enabling precise audio and vibration alerts for common civilian drones, including quad-rotors, fixed-wings, DIY, and flying drones, even in complex electromagnetic environments. This device can detect drones up to 2000 meters away with minimal false alarms.

The detector comes paired with a stationary anti drone Jammer. Together, they provide comprehensive protection for flights over specific areas, as well as surveillance or tracking of real estate, ensuring secure and controlled airspace.

Operating Instructions:

1.Attach the antenna (O-shaped mark indicates the directional antenna).

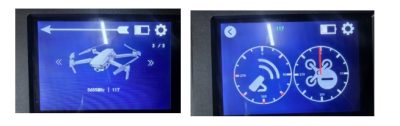

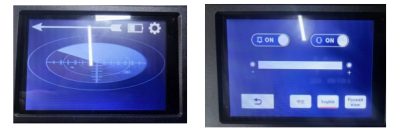

2.Press the power button to start detection. Configure the sound and vibration settings in the upper right corner. When a drone is detected, the device will vibrate, and the screen will display the drone image and frequency band.

3.Tap the drone image to access the side interface. Rotate 360° in place to find the drone’s direction. When the arrows of the two circles align, it indicates the current direction of the drone.

4.To turn off the detector, press the power button and detach the antenna.

Advantages of the Portable drone countermeasure radar WDTX3:

• Detects drones over 1.5KM, including models from DJI, TONG DAO, quadcopters, fixed wings, and FPV.
• Provides precise 360° detection.
• High sensitivity and low false alarm rate.
• Compact, durable design.
• Equipped with 3 high-power, efficient antennas.
• Lightweight and easy to operate.

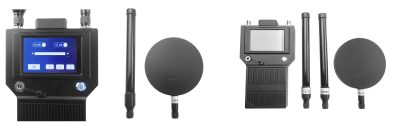

Packing list:

1: 1pcs detector

2: 1pcs 2.4G/5.8G omniglassfiber antenna

3: 1pcs 100-6000 MHz Omni Fiberglass Antenna

4: 1pcs Directional antenna 100-6000 MHz

5: 1pcs Charger
