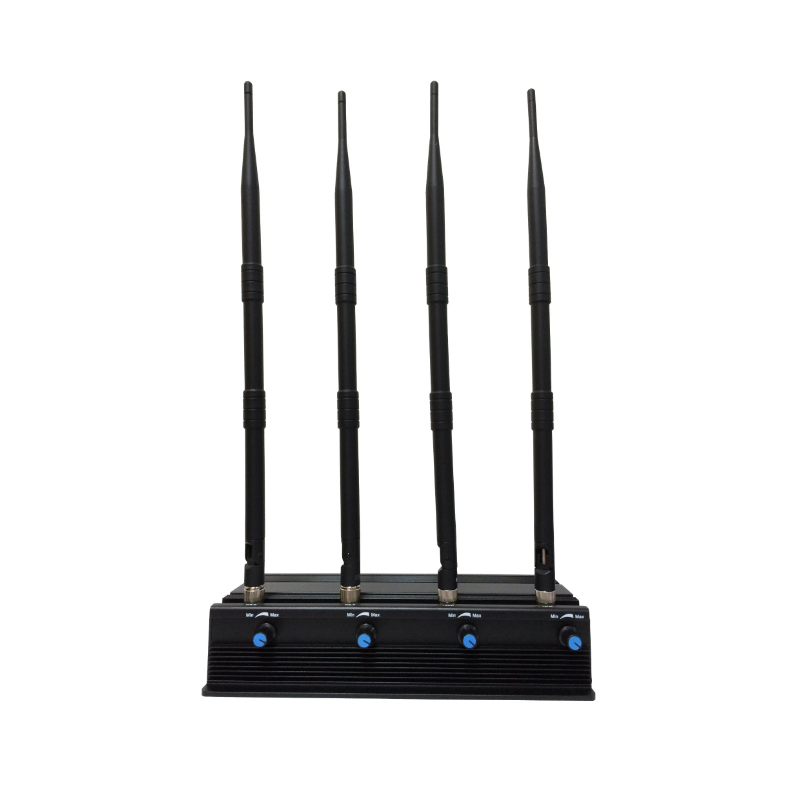

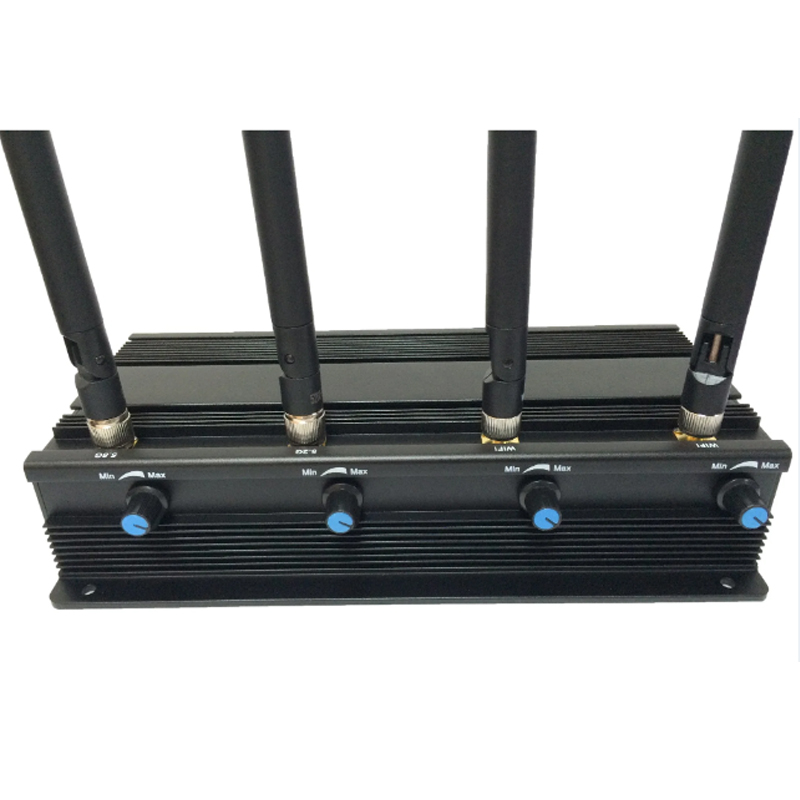

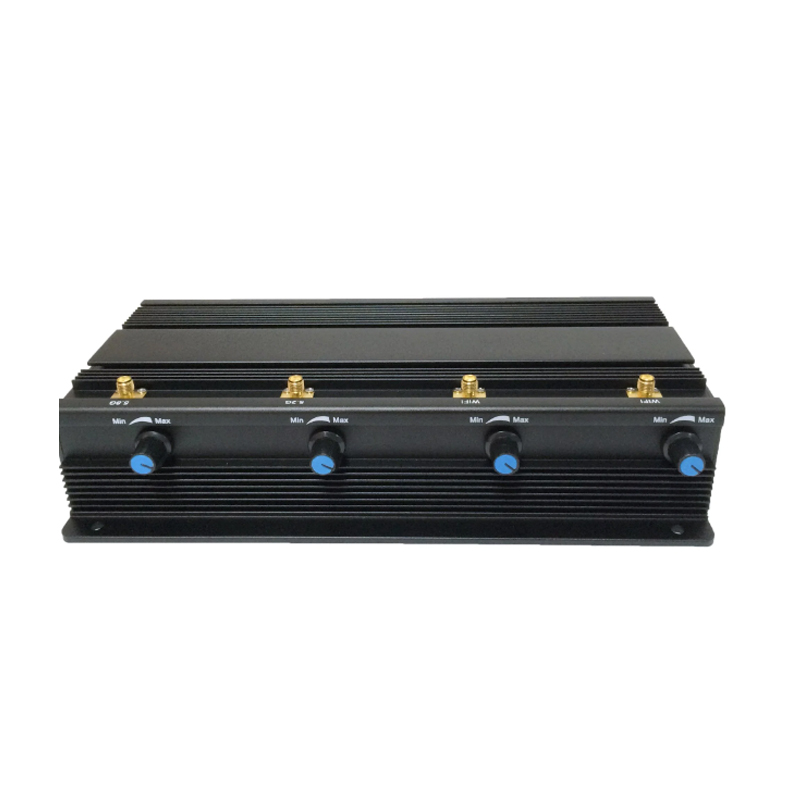

5GHZ Wi Fi signal Blocker D-US-04-2 is equipped with segmented jamming function, and four omni-directional antennas work simultaneously to fully block unmanned aerial vehicles (UAV) in low-altitude range (within 100 meters).
All antennas can be easily adjusted (up to a right angle) to suit specific tasks. This 2.4 GHZ jammer for drones uses a built-in overheat protection system that can cool quickly to prevent heat accumulation and damage to internal components.

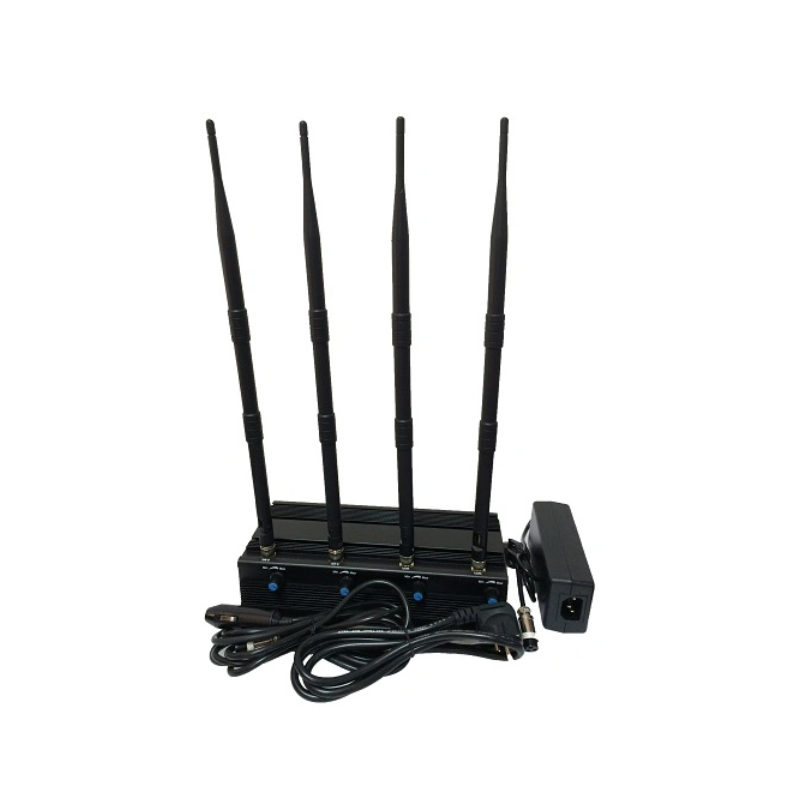

In addition, since this desktop drone jammers takes into account the needs of in-vehicle use, a DC 12V power interface is designed and comes with a matching car charger to facilitate your use needs in different scenarios.
Advantages:
- Built-in overheat protection system
- A single frequency band can adjust the power at will to control the interference distance without affecting the operation of other frequency bands
- 24 Hour uninterrupted operation
- Can be used directly on different vehicles, with a car charger.
- The external omnidirectional antenna covers all TX frequencies for downlink only, which means that cell towers are not affected.

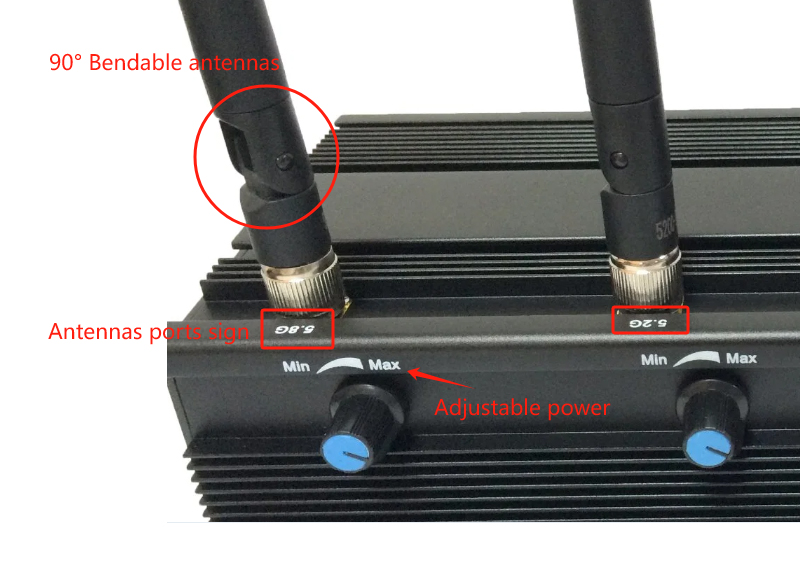

- Antenna that can be adjusted according to the placement, up to 90°
It not only blocks 2.4GHZ UAVs signals, but also the following frequency ranges:
- 2.4GHZ: 2400-2450MHz
- 2.4GHZ: 2450-2500MHz
- 5.2GHZ: 5150-5350MHz
- 5.8GHZ: 5735-5850MHz
Total output power: 7.5W
Jamming range: up to 100 meters
Dimension: 250x 140x 47mm
Net weight: 3.5kg
Power supply: 50 to 60Hz, AC 100-240V / DC 12V
Operating temperature: -40℃ to +70℃
Operating humidity: 5% to 80%
Tip: The jamming distance we provide is the average distance obtained after multiple tests under ideal conditions. The actual interference distance may vary depending on factors such as signal strength, location, power level and other environmental conditions.
