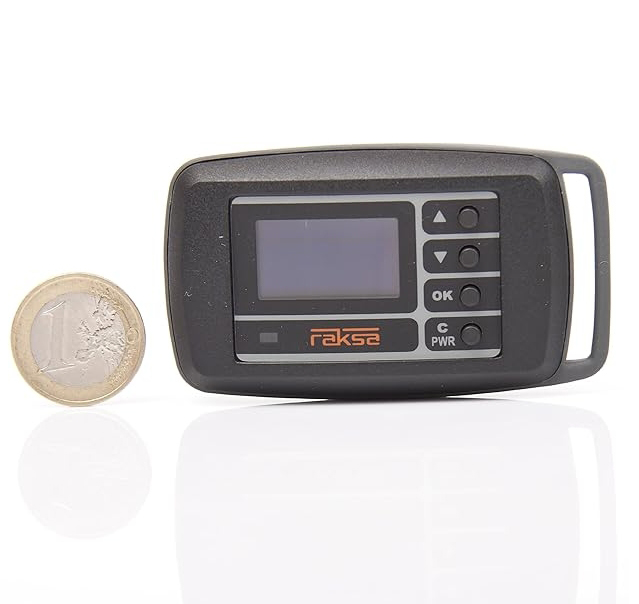

This car key-shaped wireless RF detector is equipped with a superheterodyne receiver (with low intermediate frequency and frequency synthesizer), and the scanning and analysis cycle takes only 1.0-1.5 seconds. 6 working modes can detect most radio threats currently in existence:
- 4G and above mobile phones
- DECT cordless phones
- Bluetooth and WiFi devices (2.4 GHz/5 GHz)
- Wireless cameras
- Analog signal transmitters (AM, FM, PM)
- Digital modulation devices (FSK, PSK, etc.)
- Wideband frequency hopping signals (up to 10 MHz)
- GPS positioning tracker
P-DT6 working modes:
Monitoring mode
Automatically and continuously monitors radio signals (analog + digital), and triggers an alarm and records it in the alarm log when an abnormal signal (exceeding the preset threshold level) is detected.
Suitable for situations where the main signal source is not activated. With noise reduction and anti-fluctuation functions.
Scan mode
Quickly view all surrounding radio signals (no matter how strong or weak), suitable for a preliminary understanding of the various signals present in the environment.
Search mode
Used to find the location of the signal source. The device can be moved to search for signal transmitters. The stronger the signal, the more obvious the light and sound prompts are, helping to determine the direction and distance.
Differential Search Mode
Suitable for finding hidden analog transmitters indoors. This mode is very beneficial when the transmitter is located in the same room. By comparing the changes in the current signal and the initial signal, the position is quickly locked, and the closer the signal, the stronger it is.
Digital Signal Monitoring

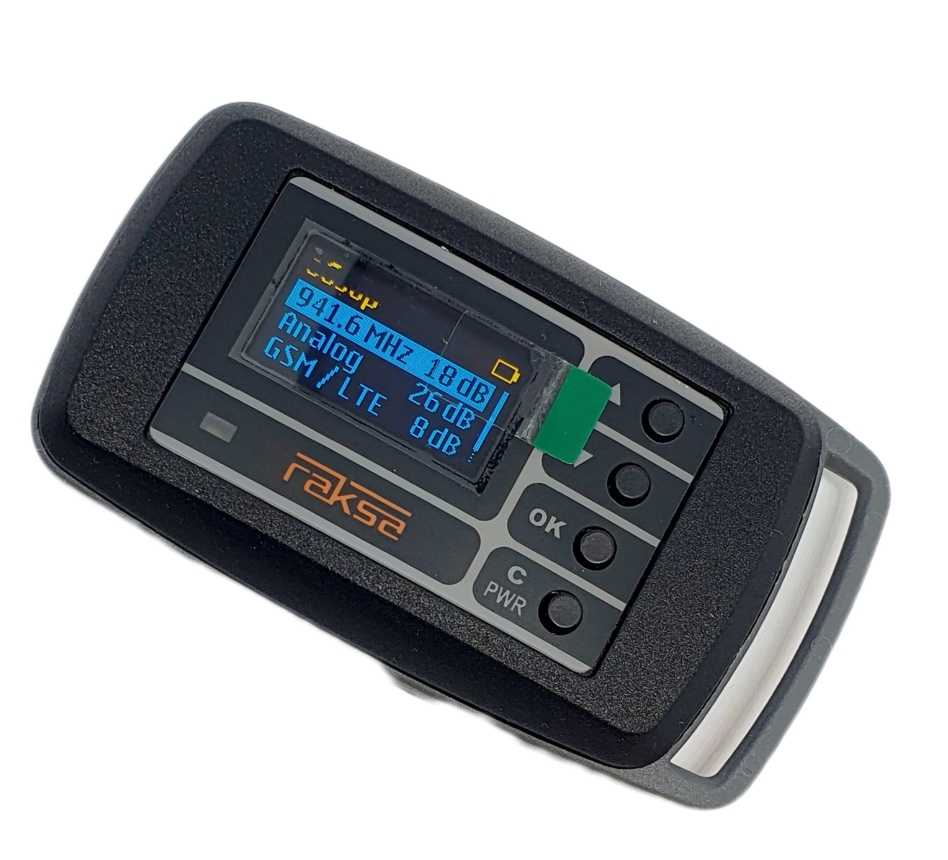

This mode is used to detect signals such as mobile phone signals, WiFi, etc. up to 4G. The display shows a list of all digital signals and their strength levels.
Audio Monitoring
Audio feedback of analog signals in scan, search and differential search modes is provided through the built-in speaker to help identify the signal.
Alarm Event Log
The alarm event log contains information about threat signals detected in monitoring mode. Up to 200 records. Including signal detection and disappearance time, signal type and maximum strength.
Multi-function RF Scanner Technical Specifications:
Frequency band: 50-3300 MHz
Typical sensitivity: 70 mV/m
Dynamic range: 50 dB
Operating temperature: 5-40 ℃
Display: OLED high-brightness screen
Language support: English, German, French, Spanish, Italian, Russian
Product size: 77 x 43 x 18 mm
Weight: 36 g
