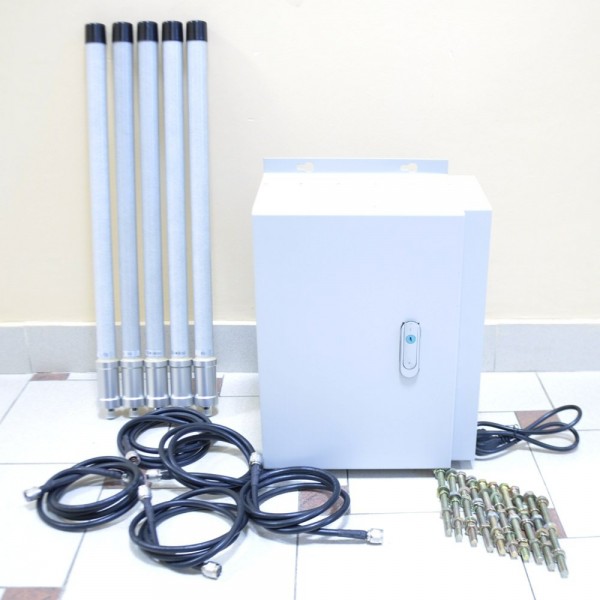

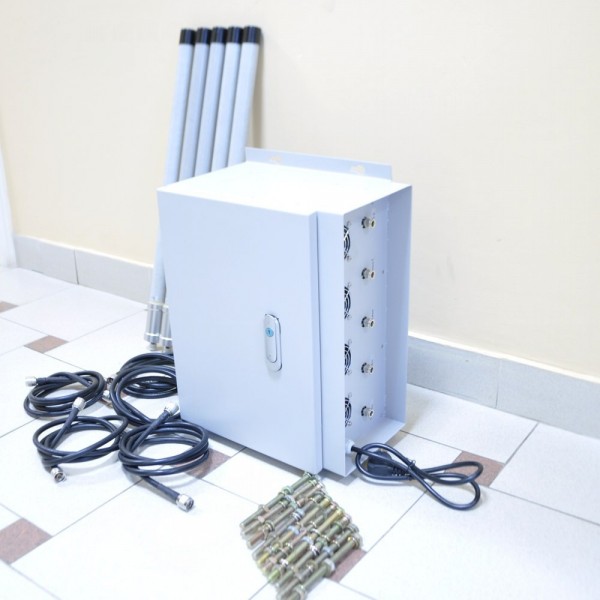

This box type mobile cellular jammer device is a professional device encapsulated in a sturdy insulation cabinet that can withstand harsh environmental changes, waterproof, dustproof, and anti-destruction. There is a standard hanging hole on the top of the chassis, which can be wall-mounted (such as light poles, monitoring towers, and the outer wall of sentry booths).
W-B05 has independent output for each frequency band and supports interference standards:
CDMA 850: 851-894 MHz
PCS: 1920-1990 MHz
3G: 2110-2170 MHz
4G 800: 758-830 MHz
4G 2600: 2620-2690 MHz
Among them, eavesdroppers running on these mobile channels will also be completely ineffective.

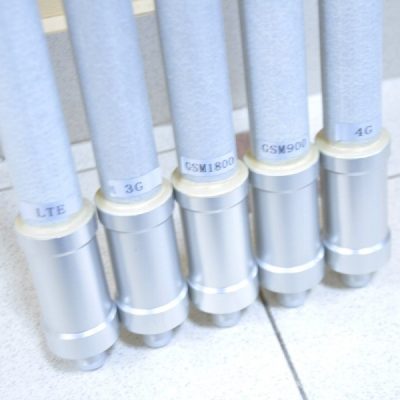

Each port is clearly marked and equipped with a one-to-one high-gain external antenna to avoid performance degradation caused by plugging the wrong port.
According to specific needs, you can choose an omnidirectional antenna for 360° area coverage (open outdoor areas), or a directional antenna to strengthen key blockades (doors, windows, walls and other controllable access points).

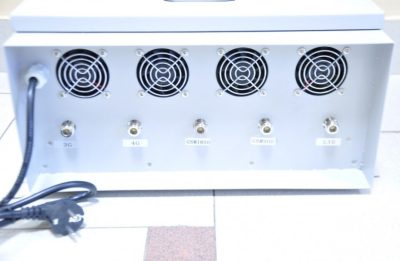

Four independent cooling fans are arranged linearly, and the horizontal air circulation is smooth, effectively eliminating the heat generated by the operation of the interference module.
Who is using the W-B05 outdoor high-power jammer?
- Border security station (blocking cross-border communication penetration)
- Power grid maintenance station (controlling signals in high-risk operating areas)
- Military security unit (anti-espionage)
- Oil and other refineries (isolating potential sources of electromagnetic interference)
- Special law enforcement departments (suppressing illegal contacts and wiretapping)
W-B05 technical parameters:
Total output power: 75 W
Average interference range: 70-150 meters
Device size: 32.5×21.5×45 cm
Weight with directional antenna: 29.1 kg
Weight with omnidirectional antenna: 26.1 kg
Operating temperature: -40°C to +55°C
Power supply: AC 100/240 V
Adaptable humidity: 5% to 95%
Power consumption: 300 W
