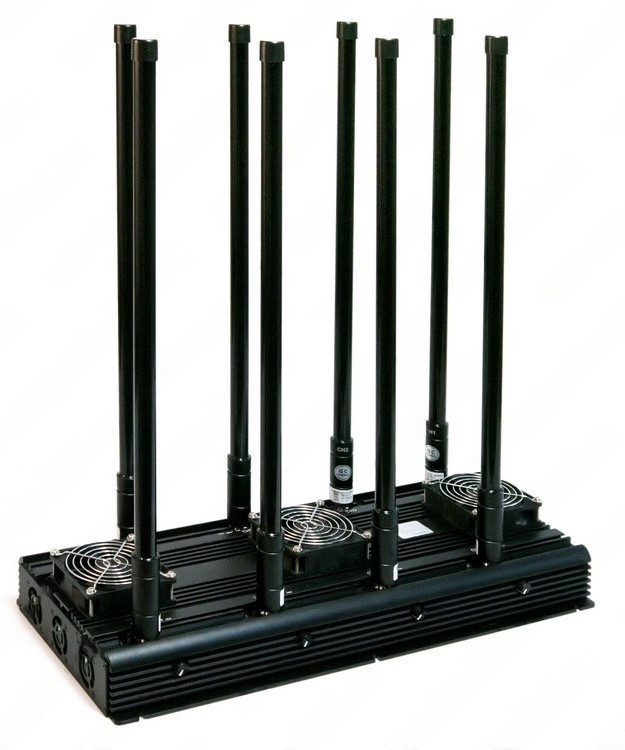

This high power Anti UAV Jammer Device is equipped with 8 high-gain omnidirectional antennas (optional), covering multiple frequency bands such as 4G mobile phones, GPS, drones, etc., and is compatible with the current mainstream 4G LTE, WiMAX networks and various civil/commercial drone systems.
Common signal types on the market are basically on the T-US-D8’s strike list:
- Mobile phone signals (2G/3G/4G/LTE/Wimax)
- Wi-Fi 2.4G/5.8G (including hotspots, home routers, cameras)
- UHF/VHF (common intercom channels)
- UAV jammer segments (including remote control, image transmission, GPS navigation satellite signals)
Feature highlights of the desktop signal blocker:
Adjustable coverage: total output power of 130W, optional high-gain omnidirectional antenna (5-7dBi) or directional plate antenna, shielding radius of 30-300 meters (actual effect is affected by environmental signal strength).
Intelligent frequency band management: independent switch knob allows you to turn on or off a signal jammer module at any time. For example, if you only want to block the mobile phone signal, the Wi-Fi module can be temporarily turned off, which is power-saving and safe.

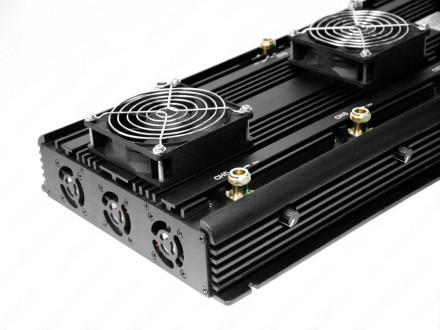

Efficient cooling system: 7 high-speed fans (top + side) are configured to ensure that the device can work continuously for 24 hours without overheating risk.
Provide safety protection: Each module has VSWR overload protection (isolator) for safe operation.
T-US-D8 basic parameters:
Total power: 100-130W, power of each frequency band 10-30W
Interference radius: 30-120 meters (GPS signal 300 meters)
Power input: AC110-240V to DC27V
Operating temperature: -10℃ to +50℃
Operating humidity: 5% to 80%
Working hours: uninterrupted work
Device size: 550×238×60mm (without antenna)
Machine weight: about 10kg (with omnidirectional antenna)
