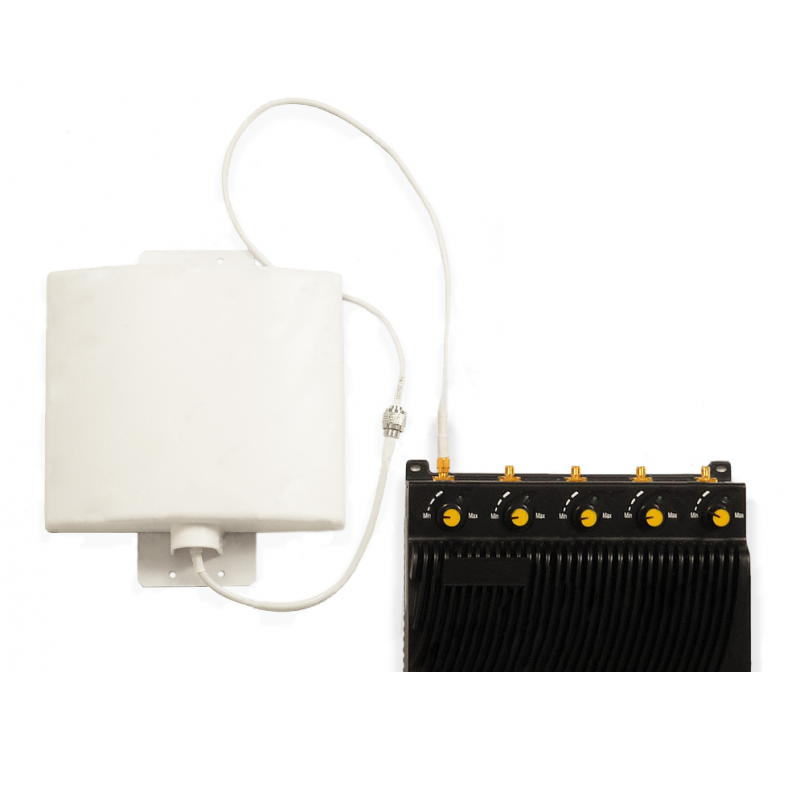

The T-US-B5 Mobile (Cellular) Communication Jammer is a fixed jammer device for Indoor. Equipped with five omnidirectional antennas and five directional antennas, it can flexibly cope with various complex environments.
Thanks to the combination of its five directional antennas, it can cover a range of up to 150 meters in the direction of antenna radiation. The device uses advanced RF jamming technology to shield mobile data transmission in major cellular communication bands such as CDMA, GSM 1900, 3G 2100 MHz, 4G LTE (including Sprint, AT&T, Verizon and other networks).
When the jamming mode is enabled, the T-US-B5 can effectively block MMS, SMS, voice calls, and photo and video information transmitted based on 4G or GPRS. All mobile (cellular) communication devices will lose signal within the jamming range, ensuring the high confidentiality of the communication content.
In order to maximize its application effect, T-US-B5 also allows precise adjustment of the output power of each RF channel through the power rotary button, and any of the channels can be turned off as needed to achieve flexible interference management.
Technical specifications of the silencer
Suppression frequencies:
– 4G Mobile (MTS/TELE2): 758-826MHz;
– 4G LTE1: 2620-2690 MHz;
– 3G: 2110-2170 MHz;
– CDMA: 851-894MHz;
– GSM 1900: 1920-1990MHz
Directional antenna suppression distance: up to 150 meters
Power supply: 5V, 12A, via 110V network adapter
Suppressor dimensions: 200x165x60 mm
Suppressor weight: 1.8 kg
Antenna:
Operating frequency range: 800-2500MHz
Input impedance: 50 ohms
Antenna cable length: 1 meter
Standing wave ratio within the operating frequency range: <1.5
Gain: 5 dBi
Rated power: 50 watts
Polarization: vertical
Connector: N Type female connector
Dimensions: 240x230x65 mm
Weight: 1.5 kg
Equipment package includes:
- Fixed communication jammer – 1 pc
- Power supply – 1 pc
- Omnidirectional antenna – 5 pcs
- Directional antenna – 5 pcs.
