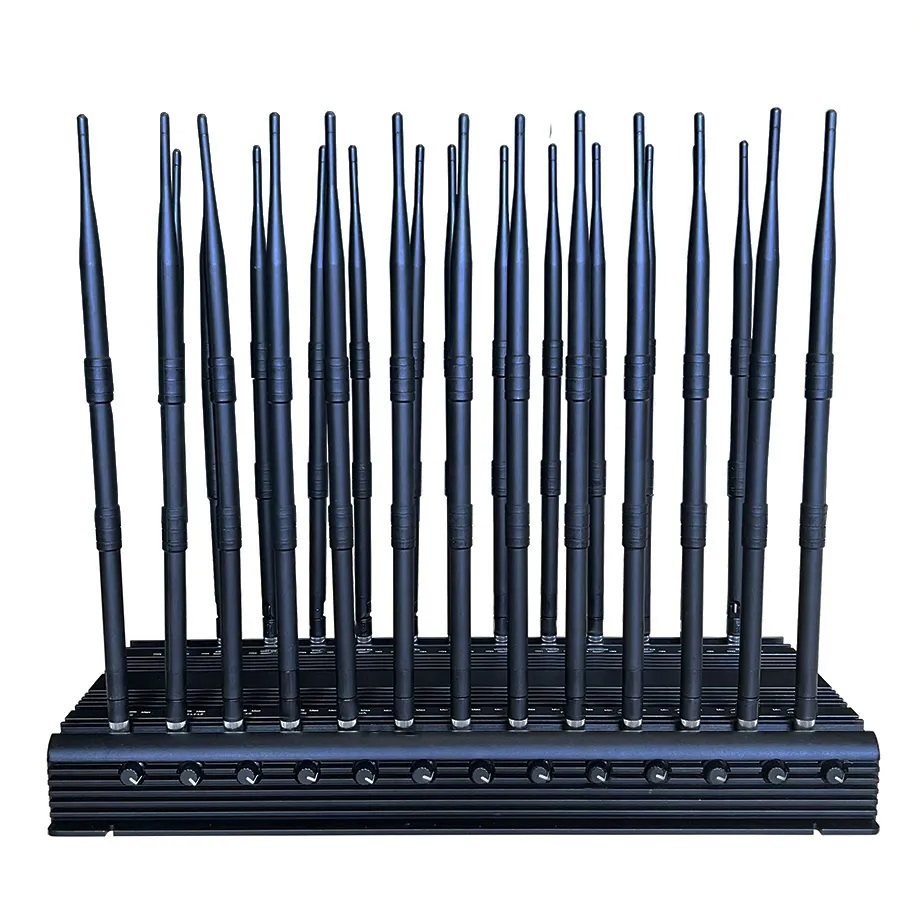

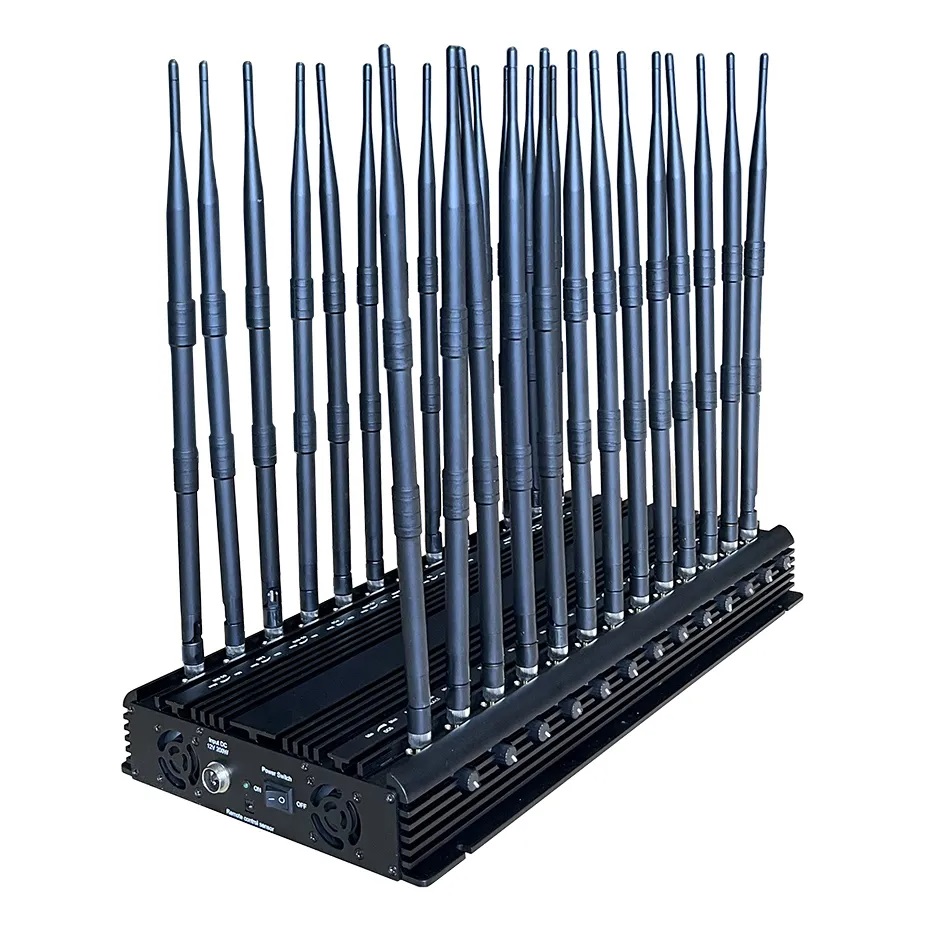

The T-US-026 is a high-end, fixed desktop signal jammer designed for users who demand maximum frequency coverage, higher stability, and precise control.
With 26 independent antennas, 66W total output power, and support for the latest wireless standards, it stands out as one of the most comprehensive full-band jammers in its class.
Unlike ordinary desktop jammers that focus only on cellular signals, the T-US-026 suppresses almost the entire commonly used RF spectrum – from legacy GSM networks to modern
5G, from WiFi 2.4G / 5G to WiFi 6E, and even FM radio and low-frequency control bands.
Its effective jamming range reaches 40–70 meters, depending on the environment, making it suitable for both medium and large controlled spaces.
Why Choose the T-US-026?
- Built for Full-Spectrum Control
The T-US-026 is not a simple signal blocker. It is a true full-band suppression system designed to handle complex signal environments where multiple wireless technologies operate simultaneously. - Independent Channel Management
Each of the 26 frequency channels can be switched on or off individually using the included remote control. This allows users to fine-tune suppression based on real needs—something many standard jammers simply cannot do. - Stable 24/7 Operation
Equipped with five integrated cooling fans and an optimized heat-sink structure, the device is engineered for continuous, long-term operation without thermal shutdown or performance drop.
T-US-026 vs. T-US-022 – What’s the Upgrade?
While the T-US-022 already offers solid multi-band coverage, the T-US-026 goes further:
- Adds FM Radio blocking (80–108 MHz)
- Supports WiFi 6E (5925–6425 MHz), which is missing on older models
- Higher total output power for more stable long-range suppression
- 26 fully independent channels for greater flexibility
If you are looking for the highest suppression capability in a fixed desktop jammer, the T-US-026 is the clear upgrade choice.
Key Features
- 26-band full-spectrum coverage, including: GSM / CDMA, DCS / PCS, 3G, 4G LTE, 5G (600–4200 MHz), WiFi 2.4G / 5G / 6E, GPS (L1–L5), VHF, UHF, 315 / 433 / 868 MHz, LoRa, LoJack, FM Radio
- 66W total output power, ber than typical 40–50W desktop models
- Up to 70 meters jamming range, depending on local signal strength
- Remote-controlled frequency selection for precise suppression
- Designed for continuous operation, low noise, efficient heat dissipation

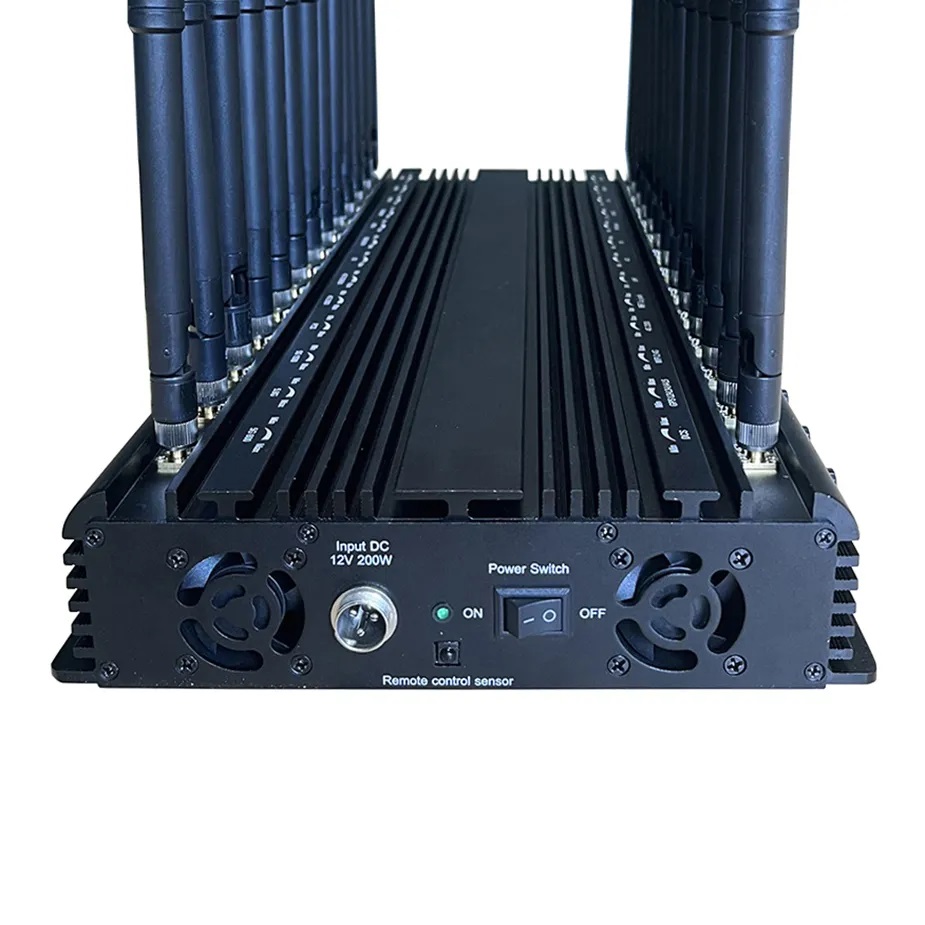

- Dual power options: AC 110/220V or 12V vehicle power supply
Technical Specifications
- Total Output Power: 66W
- Frequency Channels: 26
- Effective Range: 40–70 meters

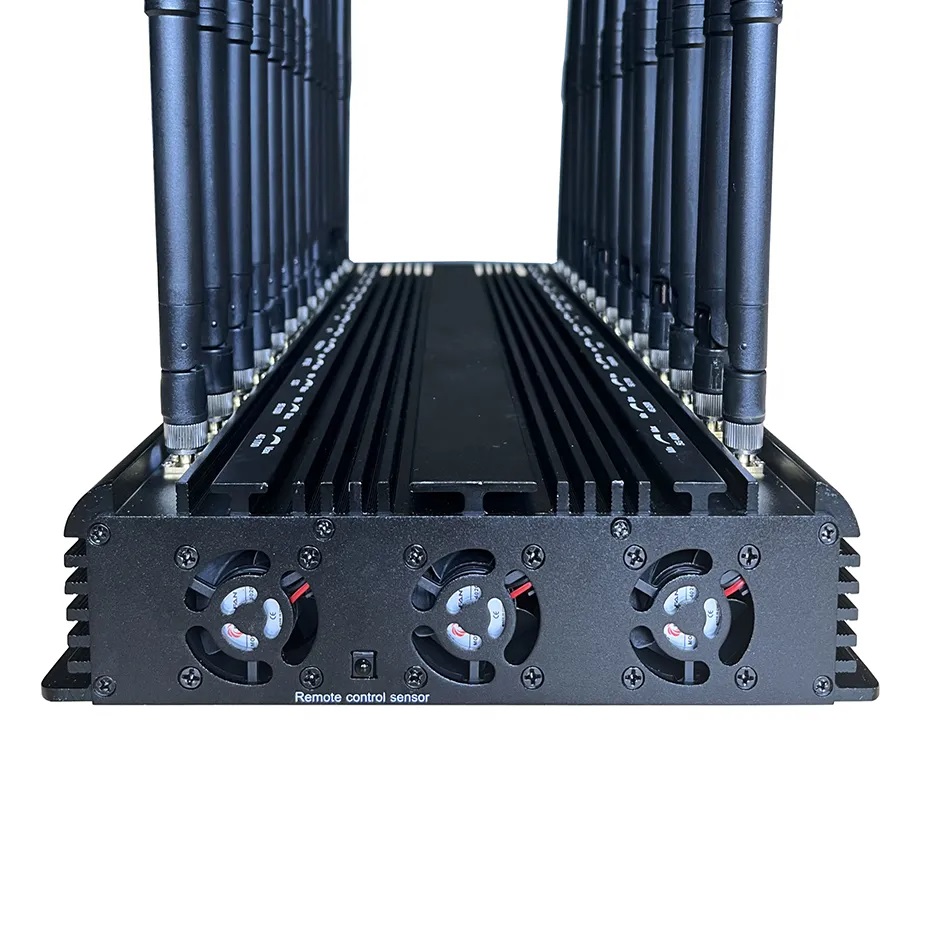

- Cooling System: 5 built-in fans + heat-sink structure
- Operating Time: 24/7 continuous operation
- Power Supply: AC 110/220V or 12V vehicle adapter
- Dimensions: 515 × 238 × 60 mm
- Weight: 6 kg

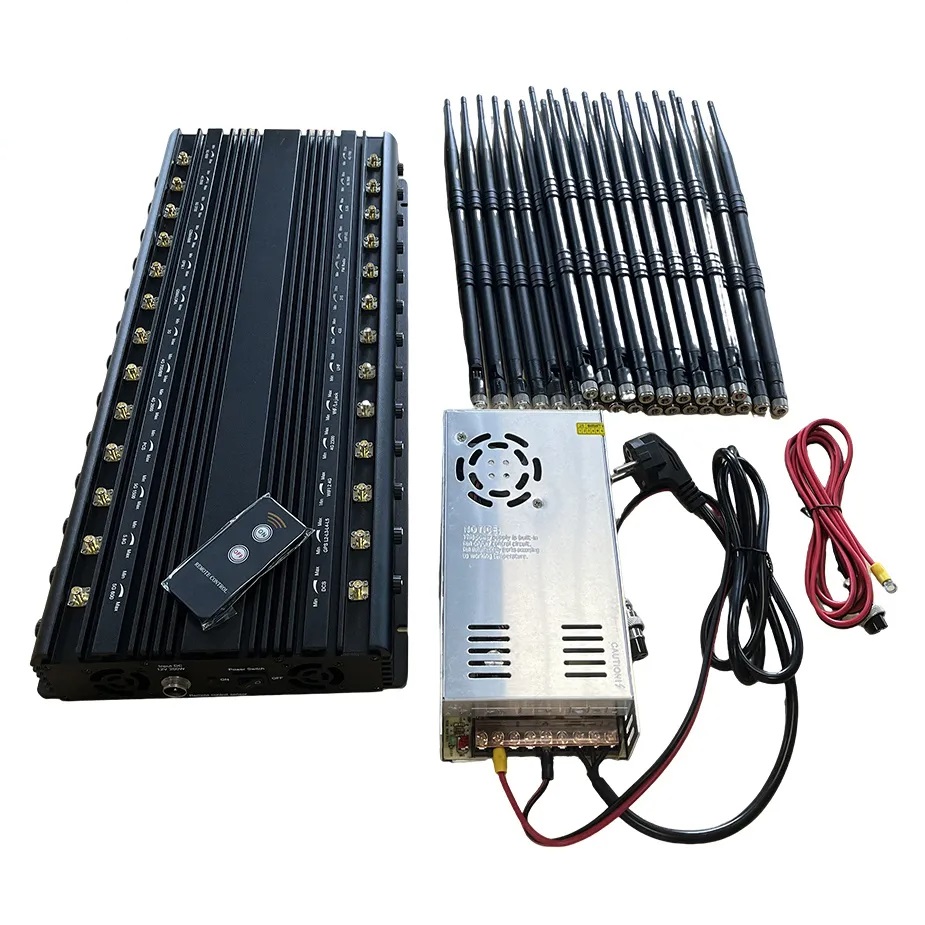

Package Contents
- 1 × T-US-026 Desktop Signal Jammer
- 26 × High-gain omnidirectional antennas
- 1 × AC power adapter (110/220V)
- 1 × 12V vehicle power cable
- 1 × Remote control
- 1 × User manual
T-US-026’s Frequency List:
- DCS: 1805-1880 MHz (3W)
- GPS L2/L3/L4/L5: 1170-1390 MHz (3W)
- WiFi 2.4G: 2400-2500 MHz (3W)
- 4G 2300: 2300-2400 MHz (3W)
- VHF / Lojack: 135-174 MHz (3W)
- UHF: 400-470 MHz (3W)
- 433 MHz: 433 MHz (3W)
- 315 MHz: 315 MHz (3W)
- FM Radio: 80-108 MHz (3W)
- WiFi 6E: 5925-6425 MHz (1W)
- WiFi 5.2G: 5100-5600 MHz (1W)
- 5G 3500: 3300-3600 MHz (3W)
- 4G 1700: 1710-1780 MHz (3W)
- 5G 600: 617-698 MHz (3W)
- WiFi 5.8G: 5600-5900 MHz (1W)
- 5G 1500: 1427-1578 MHz (3W)
- PCS: 1920-2000 MHz (3W)
- 4G 2600: 2620-2690 MHz (1W)
- 4G 700/800: 725-821 MHz (3W)
- 3G UMTS: 2110-2180 MHz (1W)
- GSM / Lora: 900-960 MHz (3W)
- GPS L1: 1570-1580 MHz (3W)
- CDMA / 868 MHz: 850-894 MHz (3W)
- 5G 3700: 3600-3900 MHz (3W)
- 4G 2500: 2500-2570 MHz (1W)
- 5G 4000: 3900-4200 MHz (3W)
