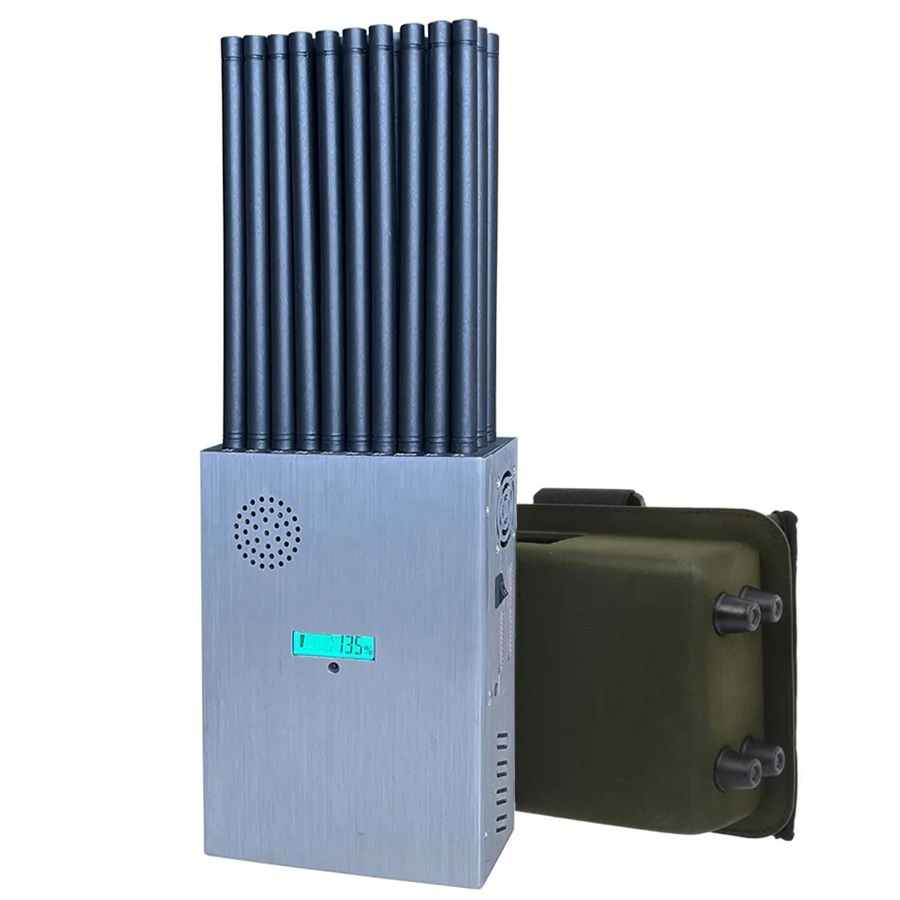

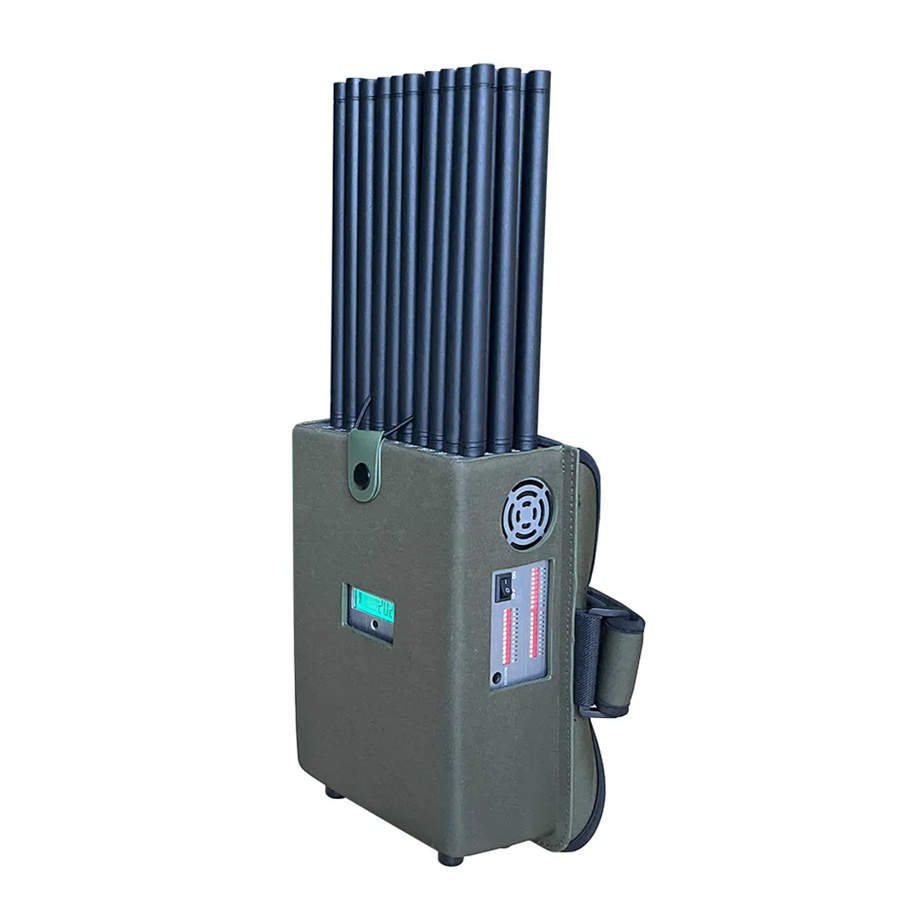

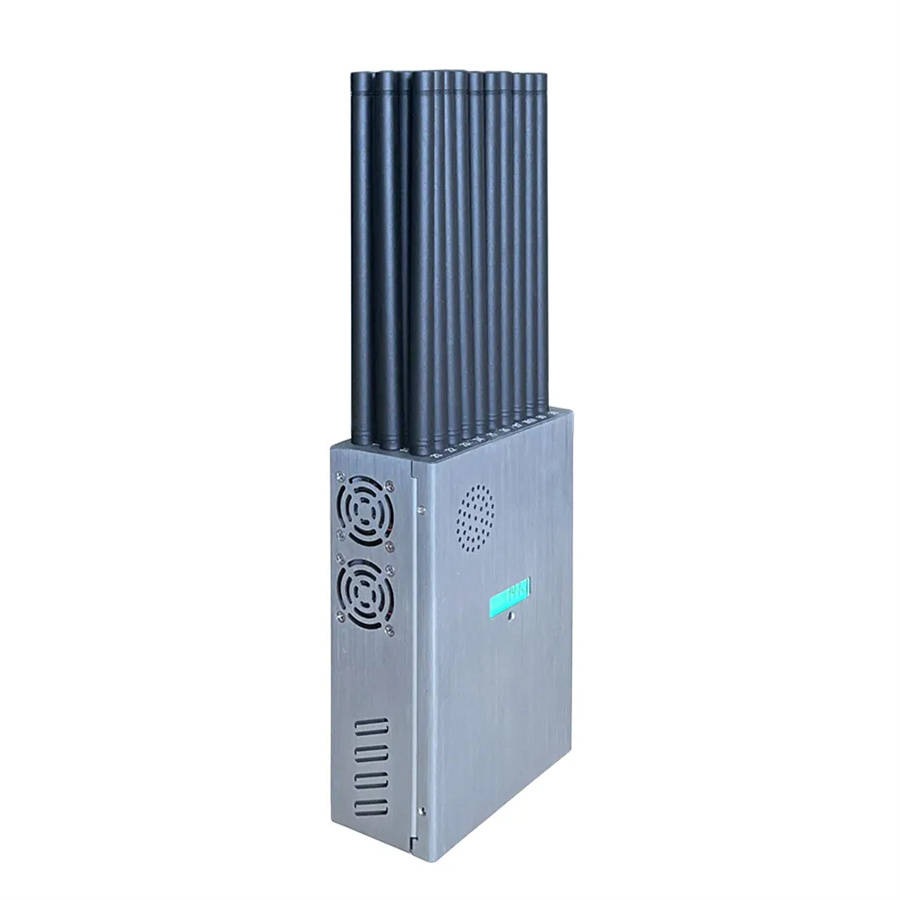

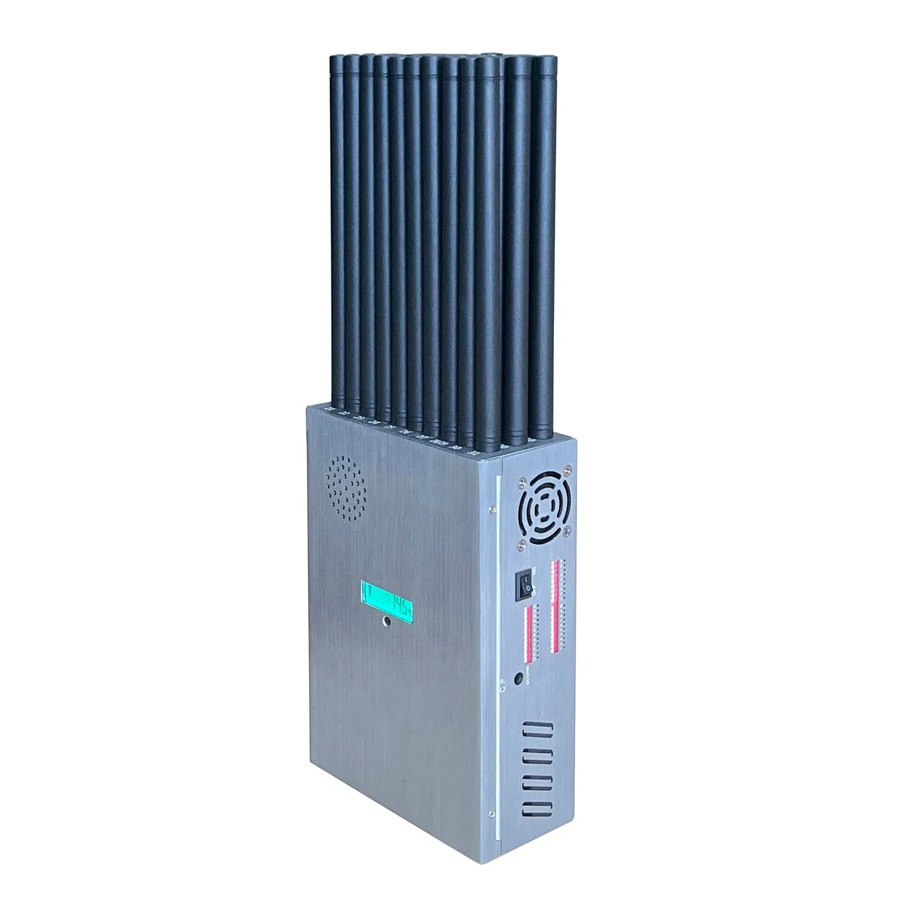

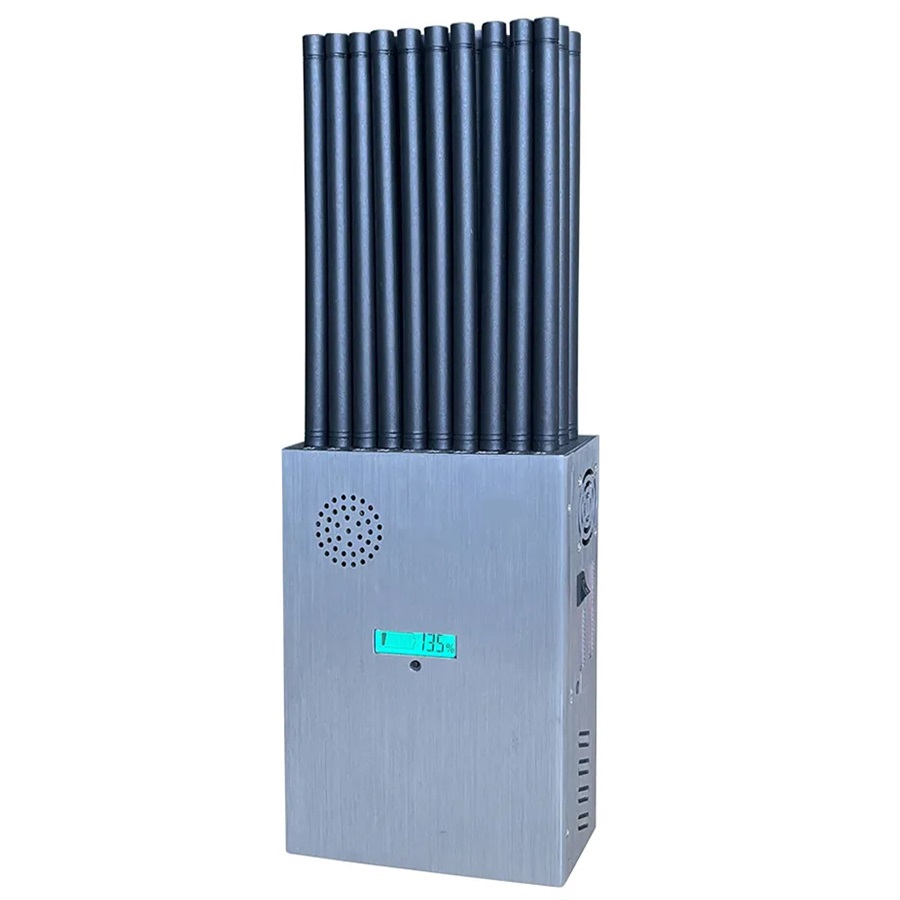

The P-US-030 is a next-generation, full-spectrum portable jammer designed for users who require absolute control over modern wireless environments. Engineered with 31 independently switchable bands, this powerhouse device is capable of disrupting almost every mainstream communication protocol used worldwide-including 2G/GSM, 3G, 4G, full-band 5G (sub-6 GHz, n77/n78/n79), WiFi 2.4G/5G/6E/7E, GPS L1-L5, FM broadcasting, LoRa, VHF/UHF, and many more.
With its highly refined RF architecture, compact form factor, and professional-grade durability, the P-US-030 WiFi 6E/7E Jammer stands out as one of the most complete and versatile portable jamming solutions available today. It not only surpasses traditional mini blockers but also outperforms earlier multiband units such as the P-US-027 (27-band) and P-US-024 (24-band) models-delivering broader coverage, higher stability, and more precise signal management.
⭐ What Makes the P-US-030 a “Global-Ready” Professional Jammer?
While most portable mobile jammers only address a handful of frequency ranges, the P-US-030 integrates an extensive RF library covering virtually all global telecommunications standards. This makes it highly suitable for:
• security service operations
• protective teams and VIP escorts
• digital forensics
• counter-surveillance missions
• radio interference simulation and testing environments
• facility-based wireless control (rooms, labs, checkpoints, vehicles)
⭐ Enhanced Performance – Engineered for 2026 and Beyond
The P-US-030 sets a new benchmark for next-generation portable 5G Cellular jammers with:
✔ 31-Band Global Frequency Coverage
A complete suite of RF suppression-mobile networks, GPS, WiFi 6E/7E, Full-band 5G, FM Rasio, ISM bands, IoT signals, LoRa, and more.
✔ Upgraded 2.5 dBi Omnidirectional Antenna System
Each antenna is optimized for stable, uniform field distribution, improving radius performance in complex environments.
✔ Powerful 30-Watt Output with Consistent Range
Effectively blocks signals within 10-25 meters, depending on ambient conditions.
✔ Independent Band Selection via DIP Switches
Activate or disable any band instantly. Customize blocking profiles for restricted-access rooms, mobile units, or sensitive operational zones.
✔ Intelligent Cooling Structure
Three integrated high-speed fans and a reinforced aluminum heat-sink system ensure long, uninterrupted operation-ideal for continuous missions.
✔ Dual Power Options
Supports both AC adapter charging and direct vehicle power, making it fully field-ready.
✔ Extended Battery Life
The built-in 7.4V / 17,000 mAh Li-ion battery provides over 90-100 minutes of real-world runtime.
✔ Rugged Aluminum Alloy Housing
Shock-resistant, heat-resistant, and engineered to endure demanding professional use.
⭐ Technical Overview
| Specification | Details |
|---|---|
| Bands | 31 independent channels |
| Total Output Power | 30W |
| Effective Blocking Range | 10-25 m (environment dependent) |
| Battery | 7.4V / 17,000 mAh |
| Runtime | 90-100+ minutes |
| Dimensions | 208 × 147 × 70 mm (without antennas) |
| Cooling | Aluminum heat-sink + 3 cooling fans |
| Antennas | 193 mm, 2.5 dBi omnidirectional |
| Total Weight | 3.74 kg (with full kit) |
⭐ Supported Frequency Bands (31 Bands Overview)
Designed to disrupt nearly all major modern communications:
- 5G NR: 617-685 MHz, 3300-3600 MHz, 3600-3800 MHz, 3900-4200 MHz
- 4G LTE / LTE-A: 700-821 MHz, 1417-1518 MHz, 1700-1800 MHz, 2300-2400 MHz, 2500-2690 MHz
- 3G / UMTS: 2010-2035 MHz, 2110-2170 MHz
- 2G / GSM / CDMA: 850-960 MHz
- WiFi / WLAN: 2.4 GHz, 5.2 GHz, 5.8 GHz, 6E (5925-6450 MHz), WiFi 7E (6450-7125 MHz)
- GPS / GNSS: L1 / L2 / L3 / L4 / L5
- LoRa / ISM: 315 / 433 / 868 / 900-930 MHz
- VHF / UHF: 135-174 MHz, 400-470 MHz
- FM Radio: 87-108 MHz
- Lojack: 164-175 MHz
This extensive list covers nearly all RF signals used in consumer, commercial, and specialized equipment worldwide.
