The D-US-G6 is a high power 6-band quadcopter blocker built for demanding field operations where reliable FPV disruption is essential. Delivering over 200W of RF power, it simultaneously targets key communication and navigation frequencies, enabling fast interference with control links and positioning signals—forcing drones to return to base or perform emergency landings.
Designed for real-world deployment, the D-US-G6 offers an effective jamming range of approximately 1500 to 3000 meters, depending on terrain and signal conditions. Its multi-band coverage includes 860–930 MHz, 1160–1280 MHz, 1550–1620 MHz, 2.4 GHz, 5.2GHz, 5.8 GHz bands, ensuring compatibility with a wide range of commercial and semi-professional UAVs.

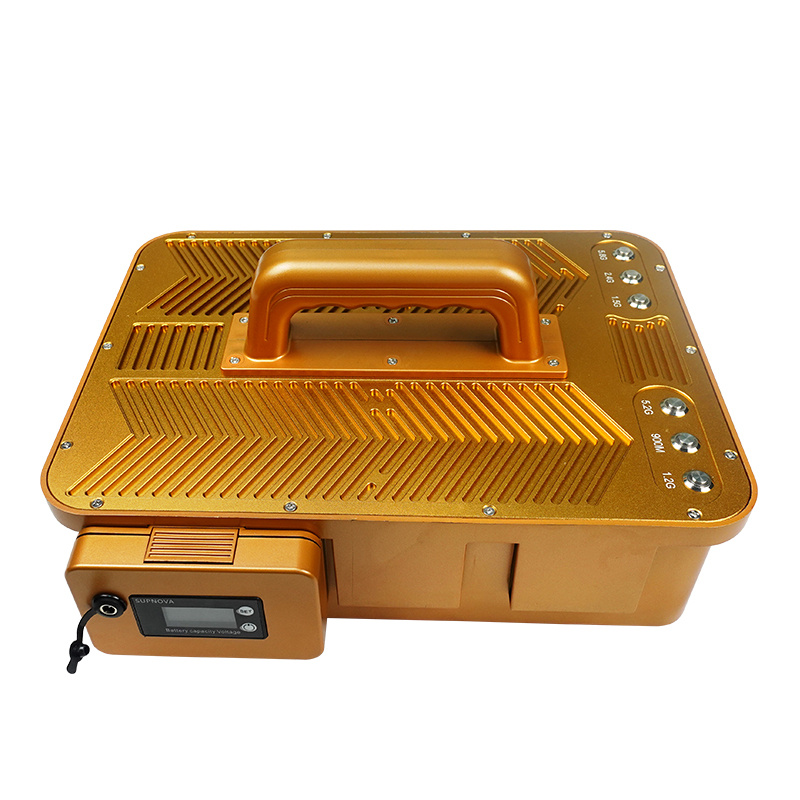

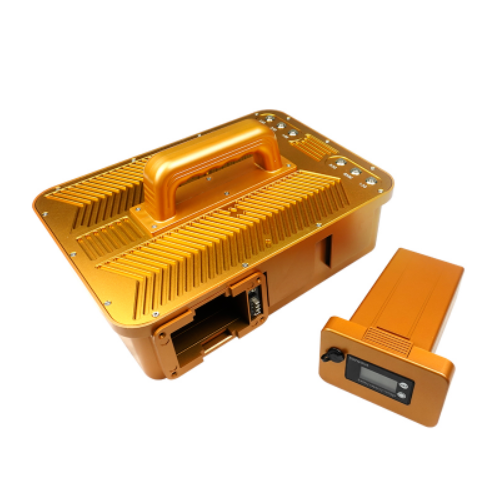

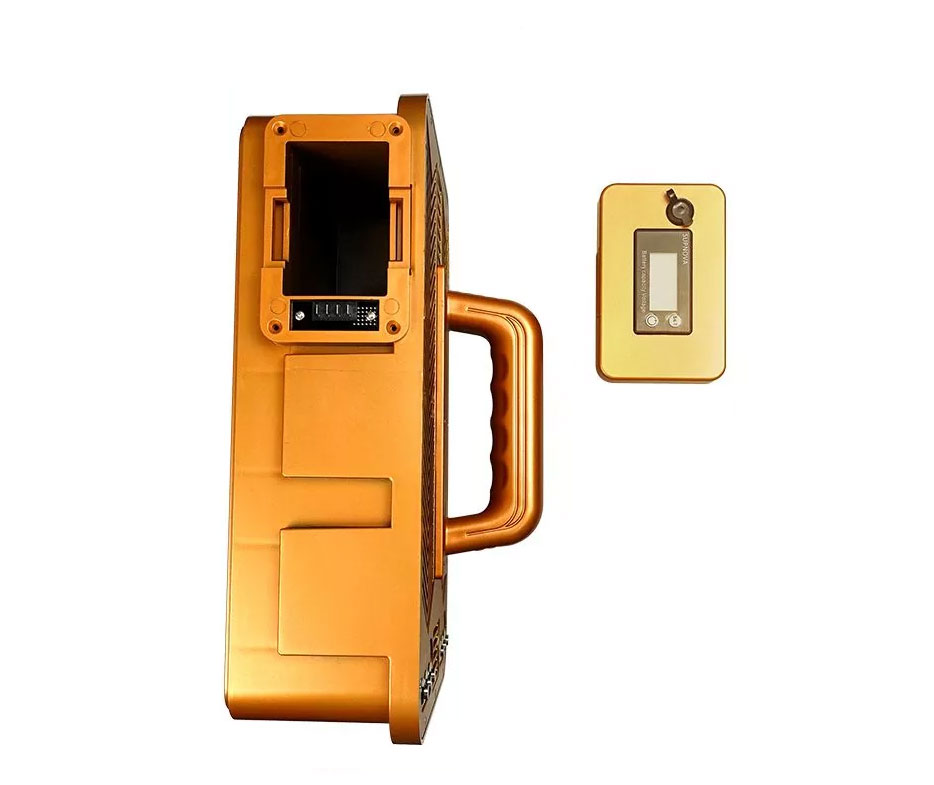

The 24V / 7Ah interchangeable lithium battery system supports continuous operation with quick swaps, while the pull-out battery design further enhances convenience during rapid redeployment—ideal for mobile teams and extended missions.
Constructed from aluminum alloy and reinforced ABS, the unit is rugged, weather-resistant, and operates reliably in temperatures from -20°C to +65°C.

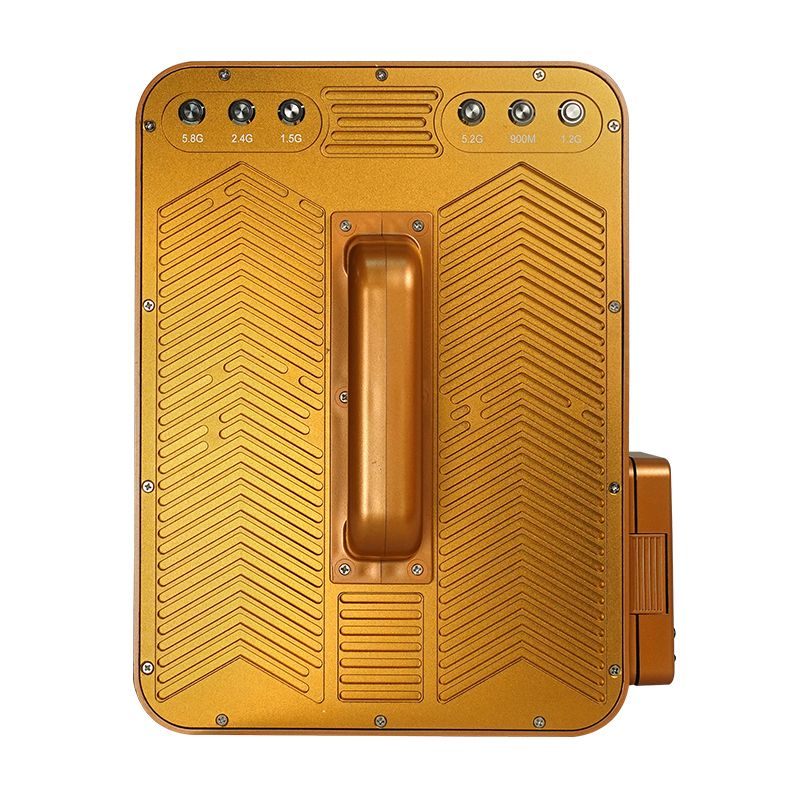

Features an all in one high-gain directional antenna system, delivering focused signal transmission for extended blocking range and improved targeting accuracy, extending effective blocking range up to 3000 meters.
The D-US-G6’s distinctive shield-inspired ergonomic design is not just visual—it enhances handling and endurance in the field:
- Improved weight distribution for prolonged use
- Designed for easy one-handed carrying, Comfortable one-hand or two-hand operation
- Reduced fatigue during extended missions
- Enhanced control with simplified one-button channel activation
Anti Drone Signal Blockers Technical Specifications:
| Specification | Details |
|---|---|
| Effective Jamming Range | Approx. 1500–3000 meters (depending on conditions) |
| Frequency Range & Power | 860–930 MHz (50 W) |
| 1160–1280 MHz (10 W) | |
| 1550–1620 MHz (10 W) | |
| 2400–2483 MHz (50 W) | |
| 5150–5250 MHz (30 W) | |
| 5725–5850 MHz (50 W) | |
| Total RF Output Power | >200 W |
| Max Power Consumption | ≤ 480 W |
| Dimensions | 370 × 270 × 105 mm |
| Weight | Approx. 5.3 kg |
| Battery Type | 24V / 7Ah Lithium-ion Battery |
| Charger | AC 29.4V / 3A |
| Operating Humidity | 30–95% |
| Operating Temperature | -20°C to +65°C |
