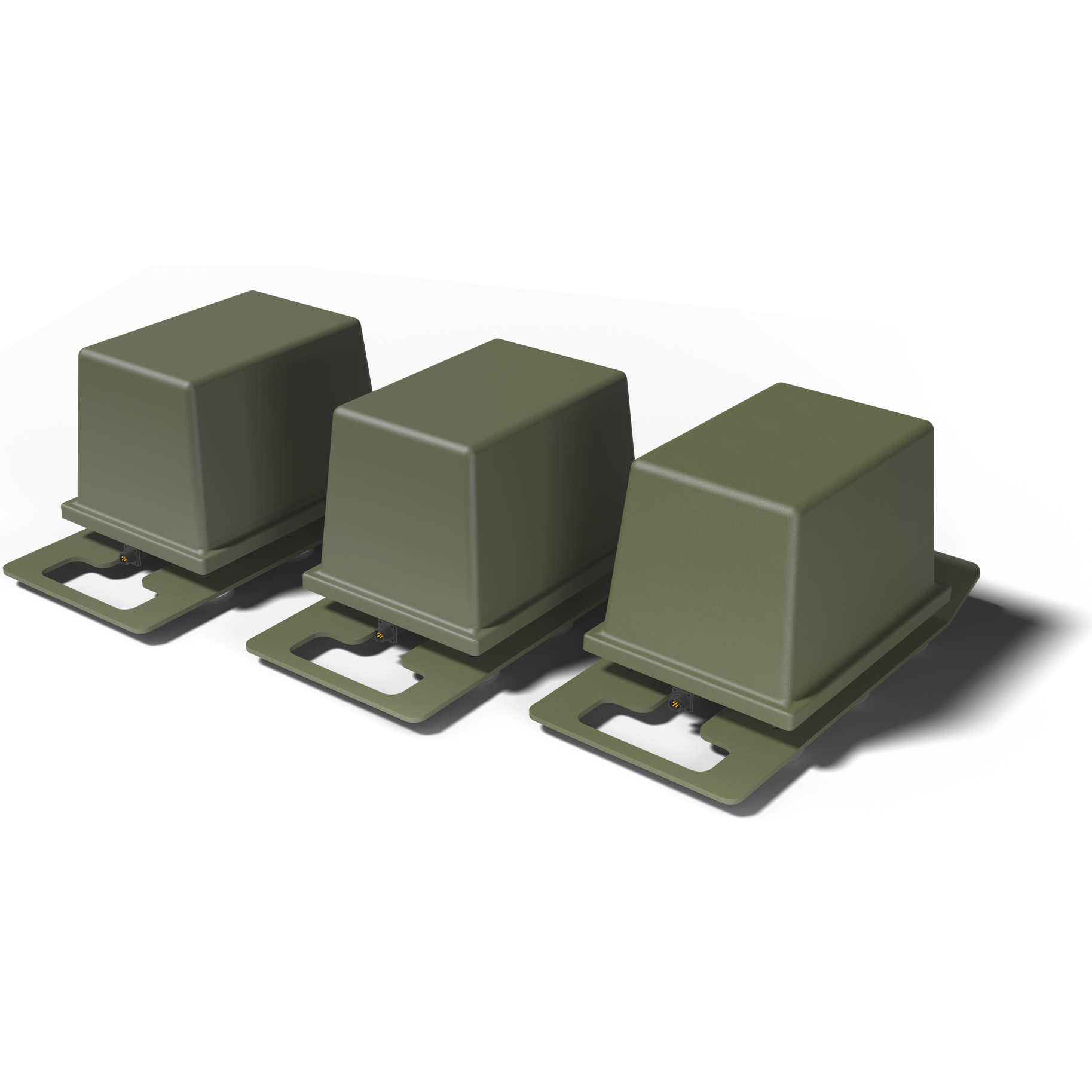

This military FPV drone jammer device is designed for tactical vehicles. The three parallel jamming modules can be installed on armored vehicles, command vehicles and evacuation vehicles, covering mainstream frequency bands such as 700MHz to 1000MHz+, effectively interfering with UAV remote control, image transmission and flight control signals (including analog and digital links).
The exterior adopts military green matte anti-corrosion coating, matching the field vehicle paint, with excellent camouflage and anti-detection capabilities.
The bottom is equipped with a universal slide rail and buckle structure, which supports multiple installation methods such as embedded or bolted. Loading and unloading can be completed in a few minutes, suitable for rapid response tasks.
After starting, D-US-F03 can not only protect the armored vehicle itself where the equipment is installed, but also form an electromagnetic suppression zone around it, and has dynamic response characteristics, and the defense range is synchronously transferred with the movement of the vehicle.
Multiple power supply options, continuous operation even in power outages:
→ 24V vehicle direct supply
→ Single 24 V battery
→ Two 12V batteries in series
Start operation with a convenient remote control, and monitor the protection process conveniently and effectively.
Configuration List (standard delivery):
Interference module FPV 700 ×1
Interference module FPV 800 ×1
Interference module FPV 900 ×1
Power control monitoring unit (PCMU) ×1
Remote control (RC) ×1
Connection cable ×3
Battery connector power cable ×1
Battery connector jumper ×1
D-US-F03 Technical Parameters:
| Output power | ≥ 25W (per antenna) |
| Power supply voltage | DC 24V |
| Transmission mode | omnidirectional / dual polarization |
| Single module size | ≤ 540 × 260 × 280 mm |
| Wheel weight of the whole set | ≤ 42 kg (three modules) |
