This tactical anti-drone jamming device realizes the integrated closed-loop operation of detection, tracking, positioning and suppression, effectively improving the ability to identify new drone signals, especially in concealed or customized communication equipment.

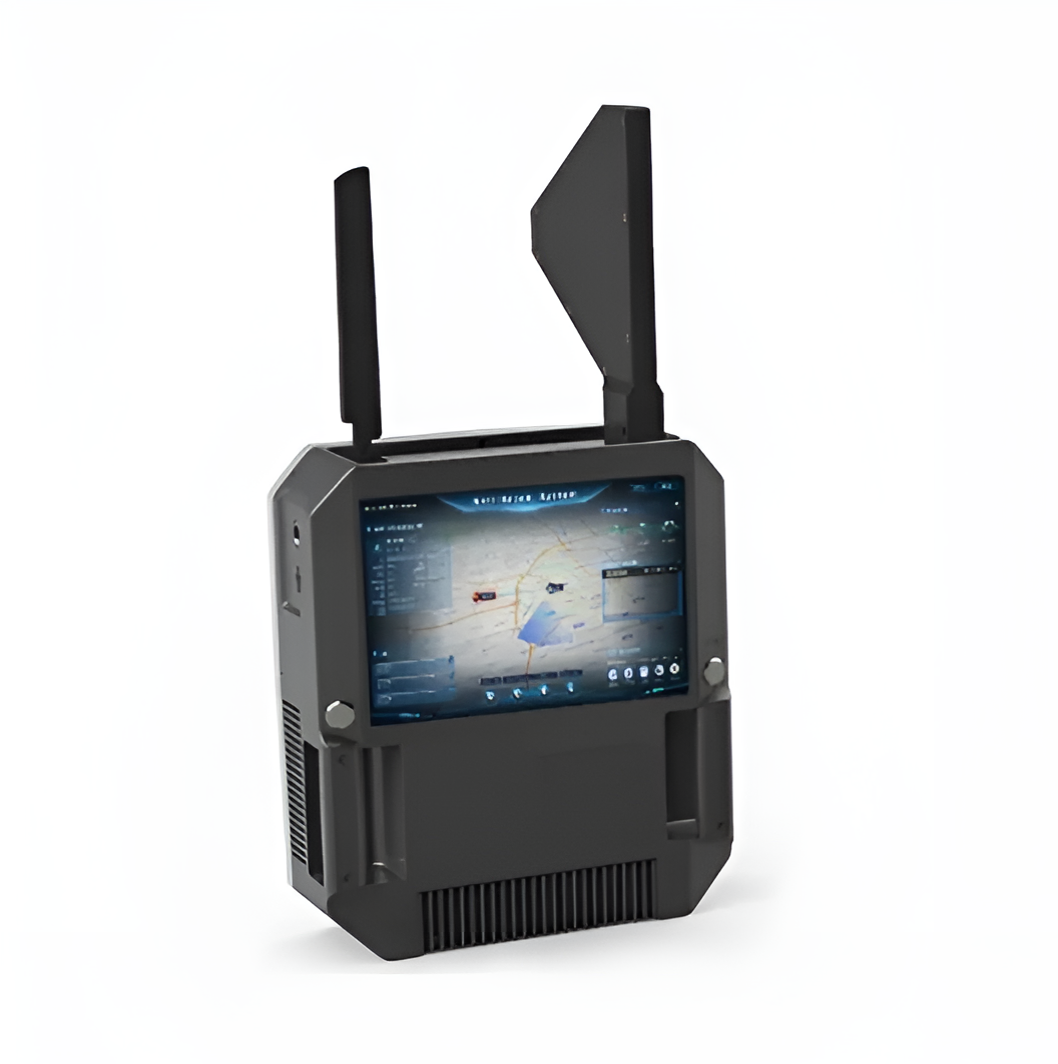

Equipped with a 10.1-inch touch operating system, the operation interface is intuitive and simple, and supports a one-click deployment mechanism. Whether it is fixed guard or temporary control, it can quickly complete the detection and suppression tasks.

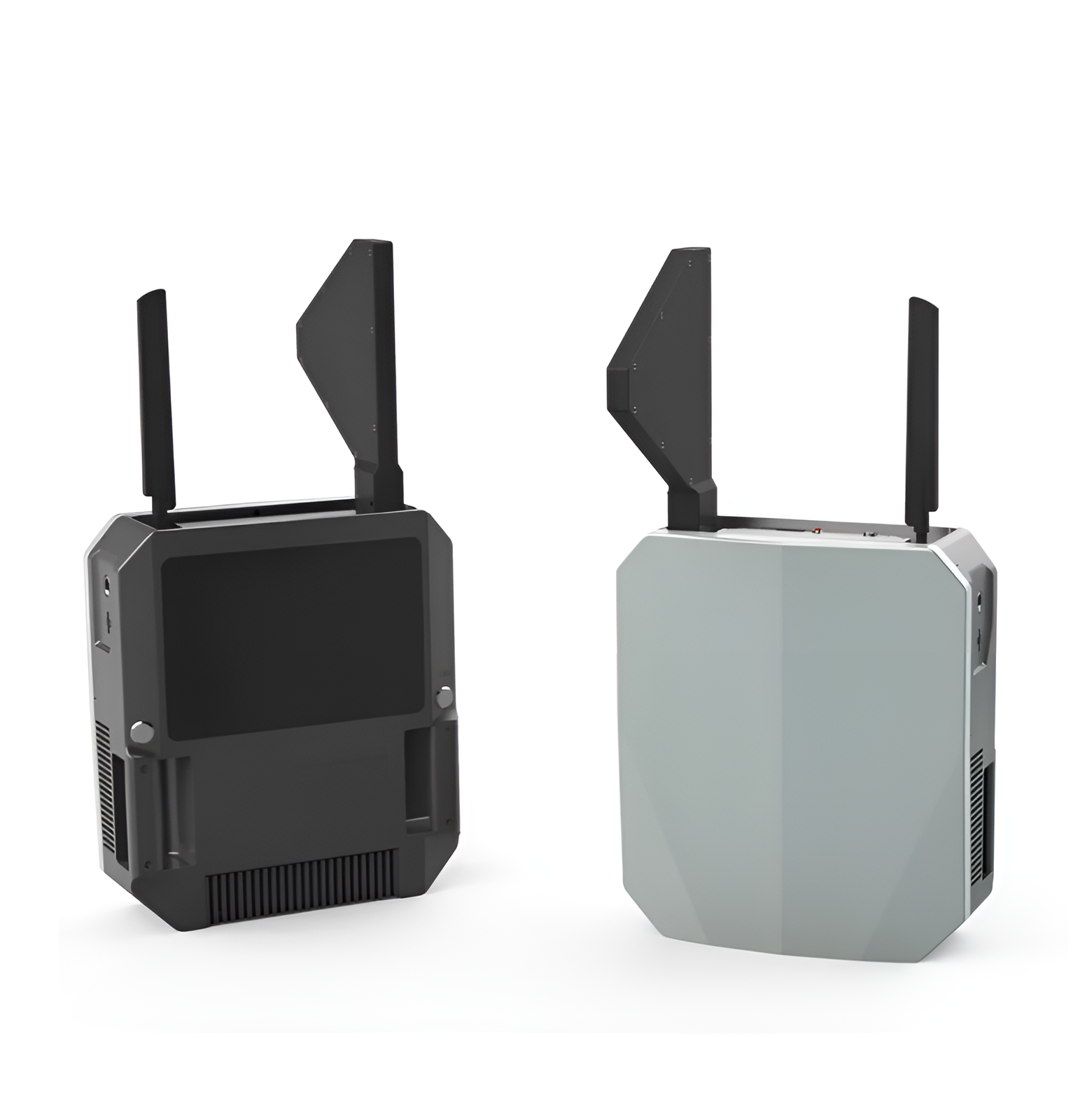

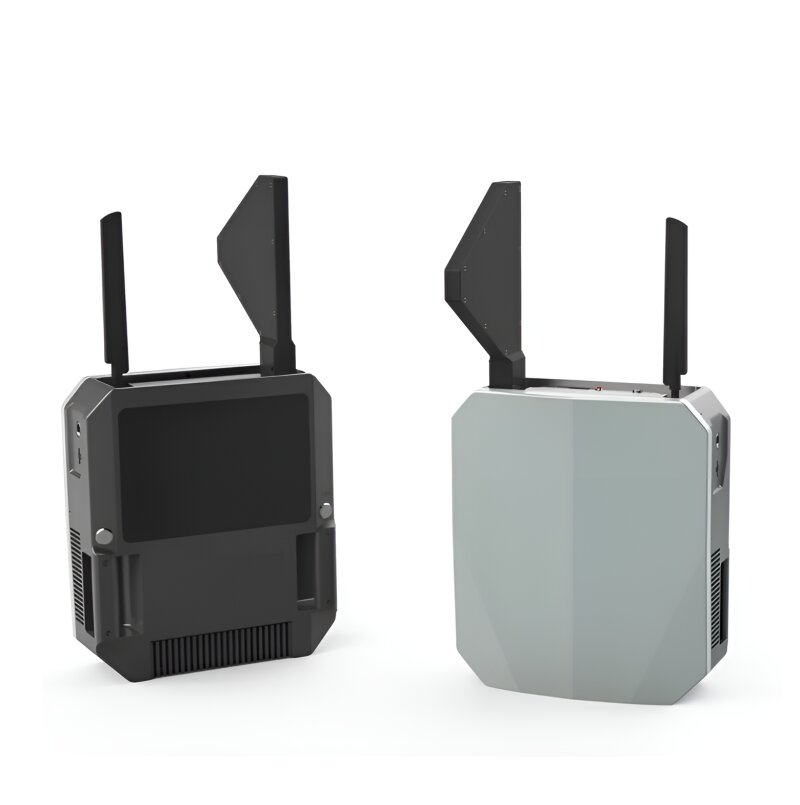

Configured with two high-gain antennas:
- Rectangular fan antenna: dedicated to long-range directional interference, improve the efficiency of attacking high-altitude aerial photography and remote-controlled drones.
- Vertical gain antenna: provides wide-angle coverage, taking into account close-range targets.

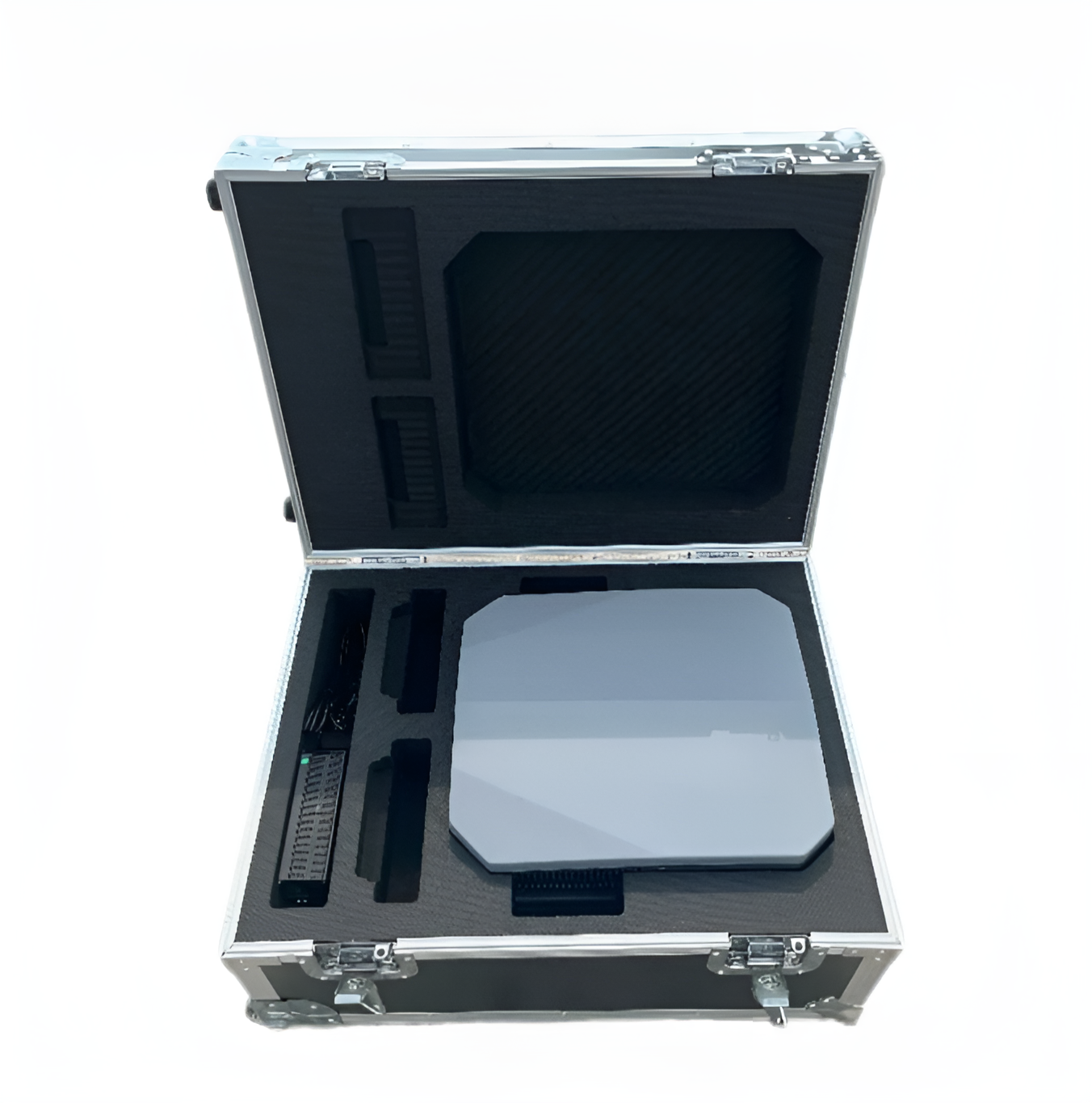

Foldable storage design, easy to carry and quick deployment on site.
D-J02’s operating process from signal detection → target locking → trajectory tracking → electronic suppression:
- 360° omnidirectional detection: continuously scan the surrounding airspace, and once a suspicious target is found, immediately trigger an intervention warning.
- Directional tracking: When an abnormal signal is identified, the system will automatically switch to directional mode and accurately lock the direction and trajectory of the drone through a narrow-angle beam.
- Real-time spectrum analysis: Through the triple algorithm of spectrum + protocol + Remote ID, customized, encrypted and low-power concealed drones can be effectively identified.
- Interference suppression execution system: After identification and confirmation, the preset interference strategy is automatically activated, and the multi-band suppression mode can be switched autonomously to ensure that the target is disconnected.
D-J02 product parameters:
| Detection mode | omnidirectional and directional |
| Detection algorithm | spectrum, protocol, remote ID (reduce false positive rate) |
| Supported frequencies | 433M, 800M, 900M, 1.4G, 2.4G, 5.2G, 5.8G |
| Detection accuracy | ±30° (spectrum), ±0.5° (private protocol) |
| Maximum detection distance | 3 km (early warning) |
| Maximum confrontation distance | 2 km (actual measurement) |
| Interference ratio | 220:1 |
| Standby time | 1.5 hours |
| Working time | 15 minutes |
| Power supply | built-in battery |
| Working temperature | -20°C to +55°C |
| Operation | 10.1-inch touch screen |
| Power consumption | maximum 400 W |
| Protection level | IP65 |
| Weight | 8 kg |
