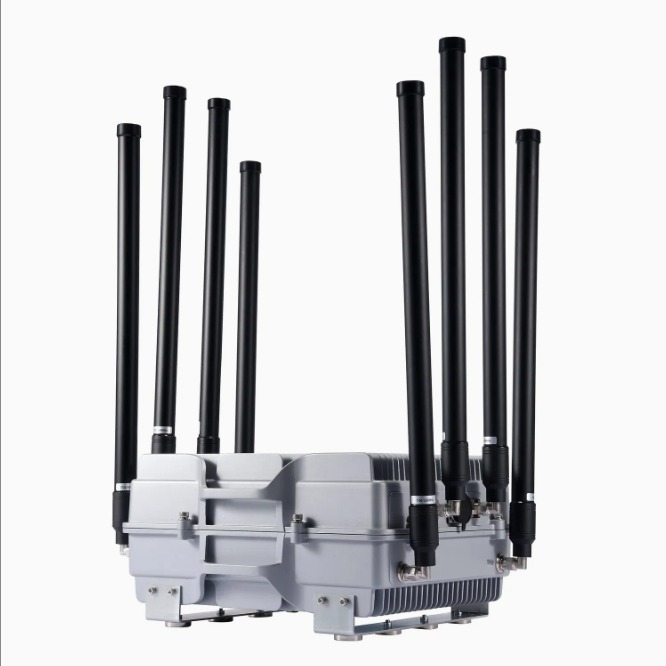

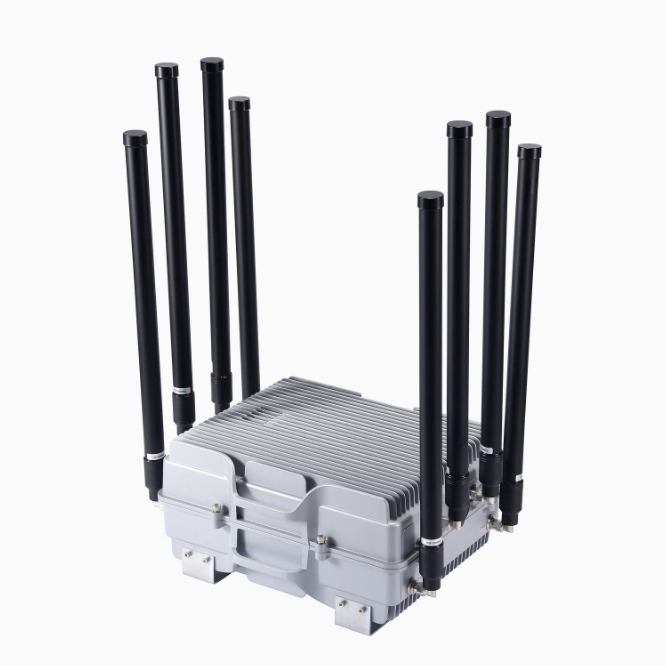

This device is a high performance 8-band omnidirectional vehicle-mounted FPV system signal blocker designed for one goal: nd omni-directional vehicle-mounted UAV jamming device is engineered for one thing: stable, full-power suppression against modern FPV and frequency-hopping UAVs. No inflated specs, no uneven output—just consistent 400W across 8 independent channels ( 50W each).
Most systems on the market follow a “1 main + 7 auxiliary channels” design, where only one band carries real power while the others are weak. The D-008 does not follow that approach. Each channel operates at true, stable output, so interference remains consistent across all bands, even when facing fast-switching drones.
Built on this high-power, full-band architecture, the D-008 is ideal for users who require reliable, continuous anti-drone protection in complex environments. For those who prefer a more cost-efficient solution while still covering mainstream drone frequencies, the previous generation D-004 is also a solid option, offering easy deployment, lower power consumption, and practical vehicle integration.
No Escape for Frequency-Hopping Quadcopter
FPV drones don’t stay on one frequency—they jump.
The D-008 responds in real time:
- Precise frequency scanning + locking
- Tracks frequency changes as they happen
- The faster the drone hops, the faster the jammer follows
- No gaps, no missed bands
This is not passive blocking—it actively keeps up with the target.

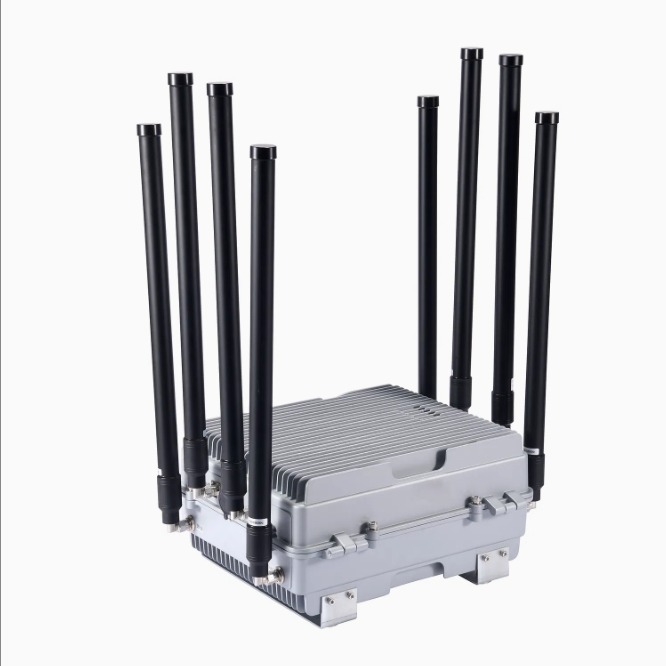

360° Drone Jammer Coverage – No Aiming Required
Directional systems require manual alignment, which costs time.
The quadcopter jammer eliminates that step:
- Full 360° omnidirectional coverage
- Immediate response to drones from any direction
- No aiming, no operator delay
Once deployed, it continuously protects the surrounding area.
Built for Movement, Not Just Static Use

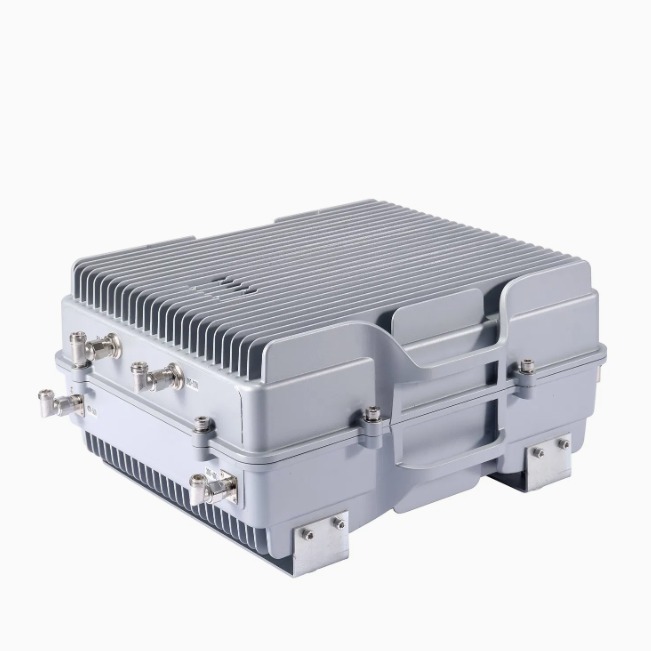

Vehicle-mounted systems often fail under vibration and movement. The D-008 is built differently.

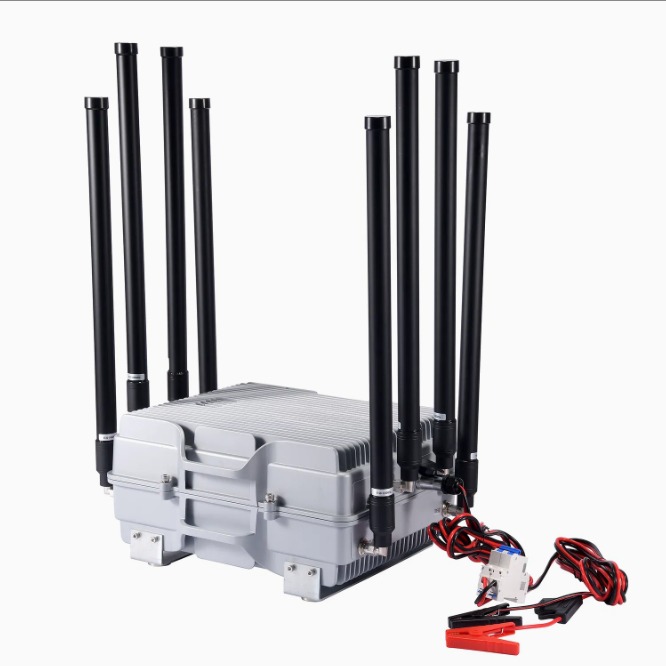

- N-type antenna connectors with waterproof sealing rings and anti-rotation pins
Triple reinforcement ensures no loosening and no water ingress, even during high-speed travel - 3mm isolation between the mainboard and chassis
Floating structure with silicone damping columns reduces vibration impact, no resonance on rough roads, no loose components, no solder failures
This is hardware designed for real-world vehicle conditions.
Signal Jammer device Technical Specifications
- Frequency Bands (Adjustable):
400–500MHz / 500–600MHz / 600–710MHz / 710–910MHz / 910–1090MHz / 1090–1200MHz / 2380–2500MHz / 5125–5350MHz - Total Output Power: 400W (50W × 8 channels)
- Coverage Range: 300–800 meters
- Power Supply: AC 110–240V
- Dimensions / Weight: 60 × 49 × 45 cm / 45 kg
- Antenna Gain: 12–15dBi
Continuous Operation in Extreme Conditions
- Operating temperature from -20°C to +70°C
- Cold-start preheating allows full-power startup in low temperatures
- Dual airflow forced cooling combined with heat pipe balancing
- Supports 24/7 continuous full-load operation
It is designed for long-duration, uninterrupted use.
Industrial-Grade Outdoor Reliability
- IP65-rated protection against water and dust
- Heat-resistant structure for high-temperature environments
- Suitable for airports, border control, and critical infrastructure deployment
Strong Signal Penetration for UAV Jamming in Complex Environments
Urban environments weaken many jammers. It is optimized for actual field performance:
- Reliable penetration in buildings and obstructed areas
- Stable suppression in complex electromagnetic conditions
- Effective coverage range of 300–800 meters
Package Includes
- Main unit ×1
- Omni-directional spring antennas ×8
- Magnetic antenna bases ×8
- Power cable ×1
