Modern drones are becoming smaller, faster, and harder to track — but their biggest weakness remains the signals that keep them connected. A UAV may look advanced in the air, yet it still depends on radio communication, positioning signals, and remote control links to operate.
This 2km long range anti drone jammer takes advantage of that fact by combining six frequency channels into one portable platform, covering 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz bands commonly used by many quadcopter systems—and delivers an output power of 30W.

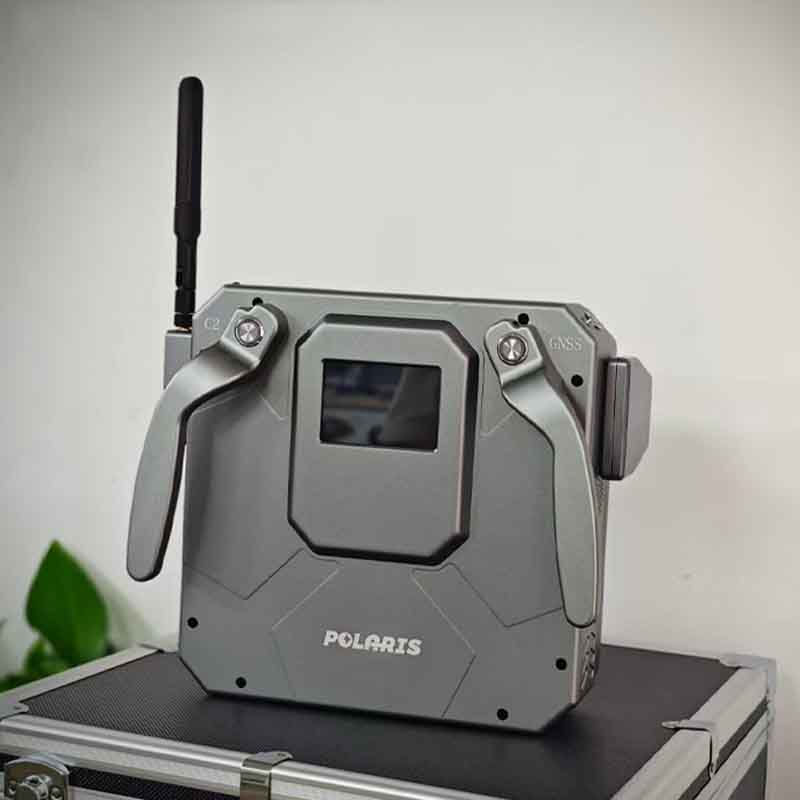

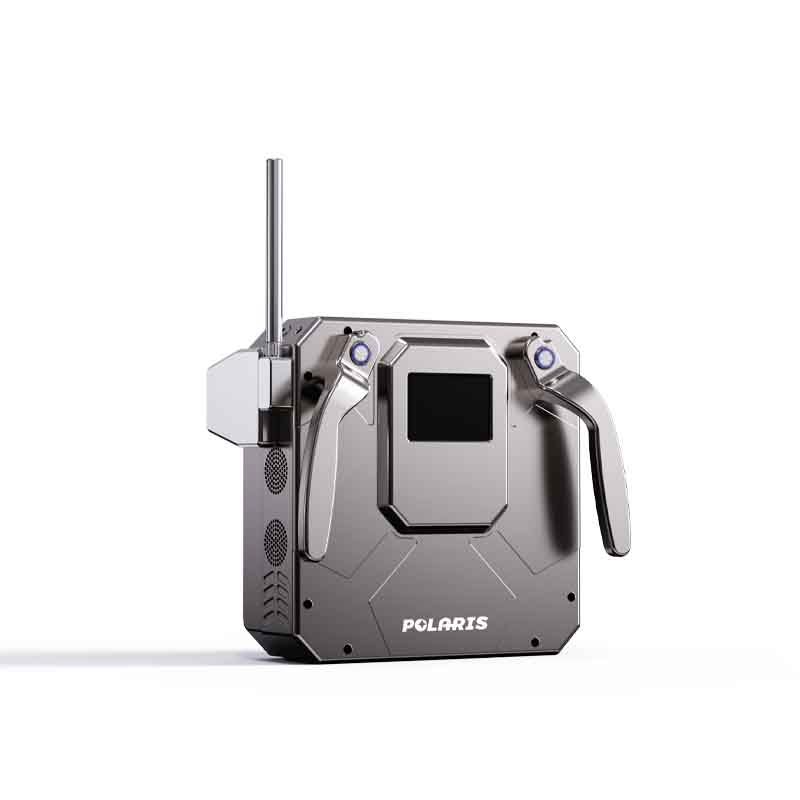

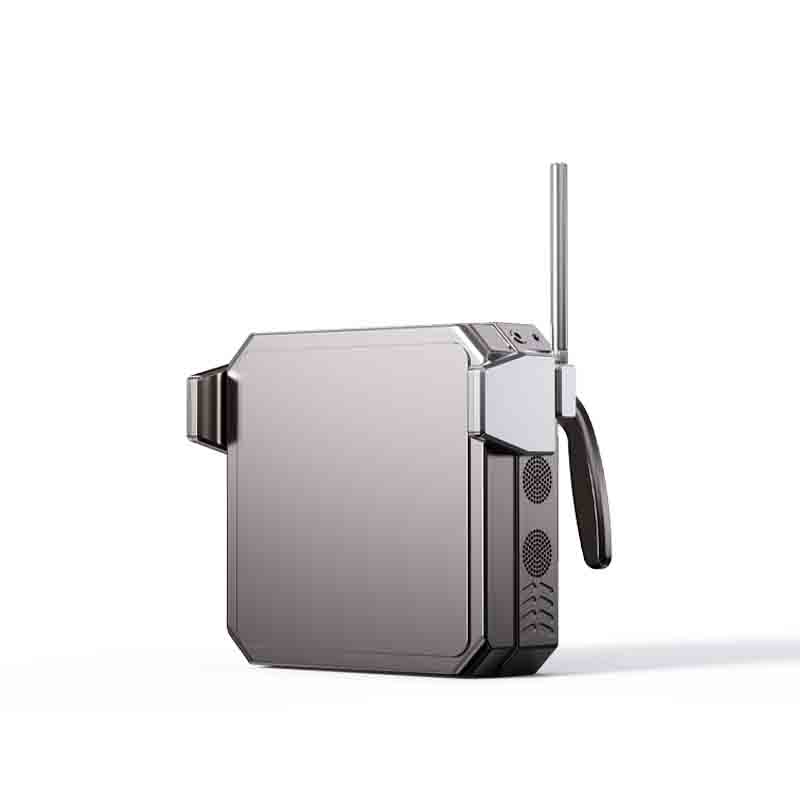

The jamming device features a shield-shaped, military-grade aluminum alloy housing with an IP55 protection rating, ensuring resistance to dust and water splashes during outdoor deployment, and a dual-handle design further enhances portability.

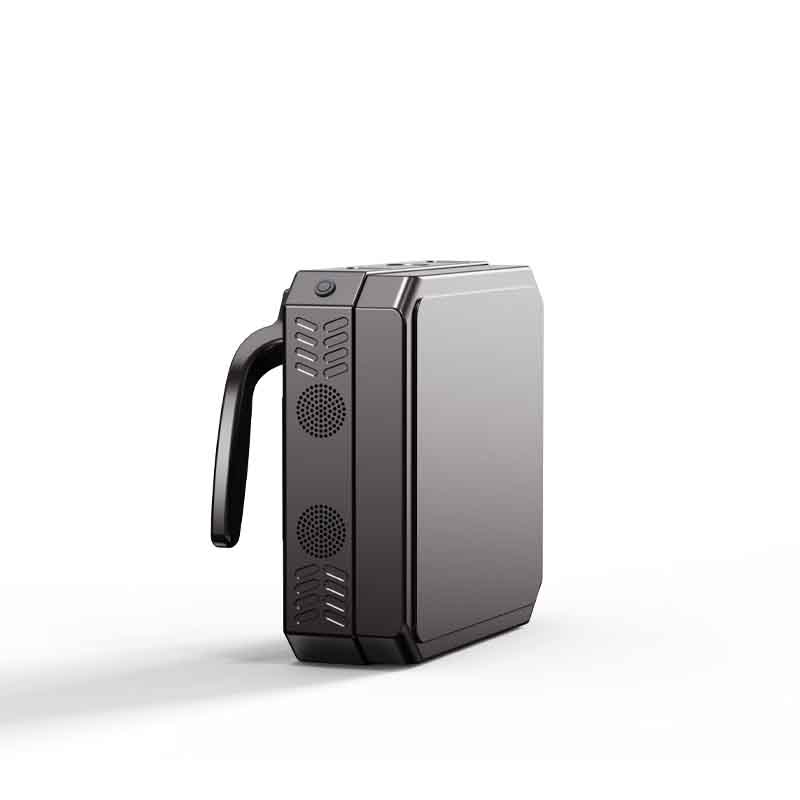

Nevertheless, the active cooling provided by the dual fans on one side prevents the interference device from overheating, thereby ensuring stable operation.

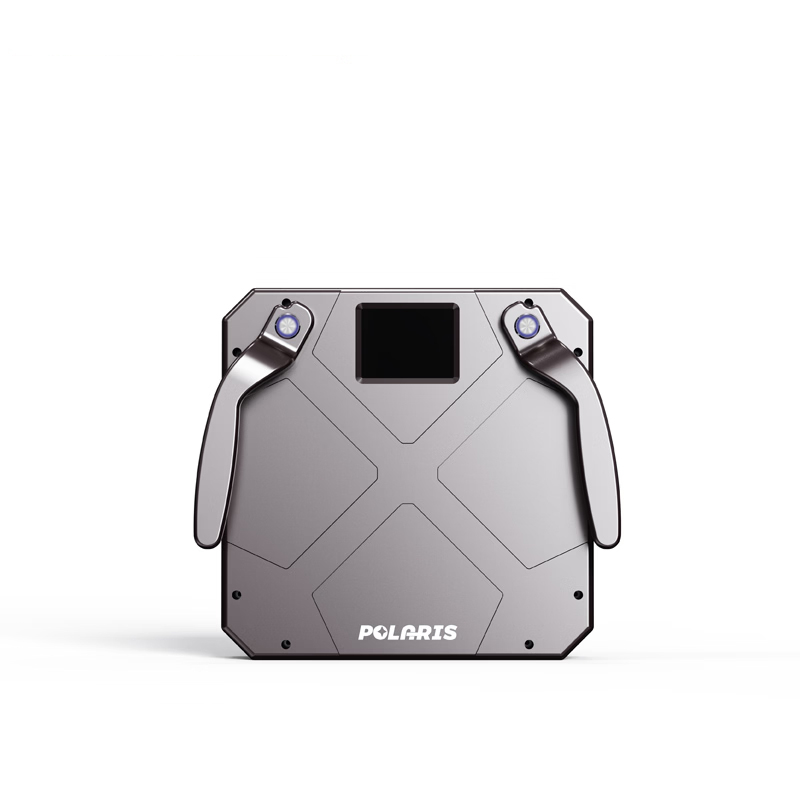

Additionally, it offers operators multiple control methods—including an integrated touchscreen, physical buttons, and a wireless remote—allowing for rapid adjustments across various scenarios.

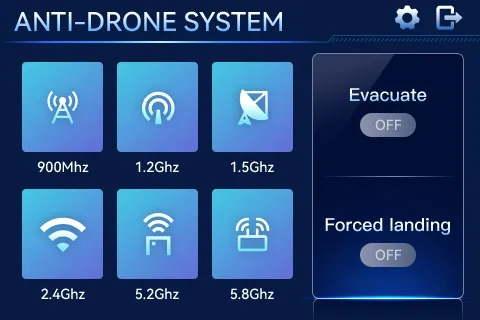

The touchscreen supports two practical operating modes:
“Drive Away” Mode
In this mode, the 2.4GHz and 5.8GHz bands operate simultaneously to interfere with the communication link between the quadcopter and its remote controller. Once the control signal is interrupted, many consumer drones may activate their built-in safety functions and automatically return to the original takeoff location.
“Forced Landing” Mode
Compared with Drive Away Mode, Forced Landing Mode works on a wider frequency combination. The 1.5GHz, 2.4GHz, and 5.8GHz bands are activated while GPS signals are disrupted, affecting the drone’s navigation connection. After losing positioning support, some quadcopters may enter an automatic landing procedure according to their internal safety settings.
( PS: For details on other touchscreen functions, please refer to the user manual.)
Meanwhile, the built-in 6000mAh lithium polymer battery provides more than 2 hours of operating time, while USB-C fast charging makes field preparation easier. The navigation interface and clear control layout allow operators to monitor and adjust settings without complicated procedures.
UAV Signal Blocker’s Specifications:
| Specifications | Details |
|---|---|
| CH1 | 860MHz – 930MHz |
| CH2 (GPS L1) | 1570MHz – 1620MHz |
| CH3 (GPS L2) | 1170MHz – 1280MHz |
| CH4 (WiFi 2.4G) | 2400MHz – 2500MHz |
| CH5 (WiFi 5.2G) | 5150MHz – 5350MHz |
| CH6 (WiFi 5.8G) | 5725MHz – 5850MHz |
| Power Consumption | 30W |
| Interference Range | Up to 2 km (Depending on signal conditions and environment) |
| Operating Time | 2 – 4 Hours |
| Display Size | 3.5 Inches |
| Weight | 3.5 kg |
| Dimensions | 300mm × 260mm × 140mm |
